PCIe / PCI扩展功能的电脑系统

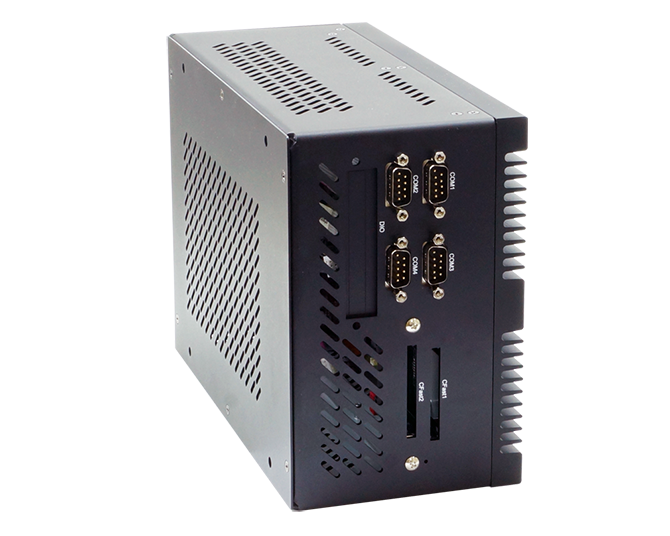

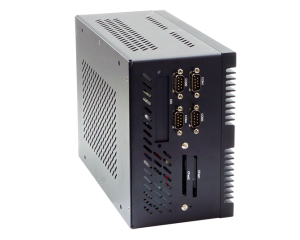

APOLLO-RS 3I370DW (OEM)
High Performance 8th / 9th Gen Intel® Coffee Lake-S
i7 / i5 / i3 Fanless Embedded Computers
i7 / i5 / i3 Fanless Embedded Computers
特点
- Intel® 8th / 9th Gen Coffee Lake-S i7 / i5 / i3 / Pentium / Celeron CPU
- Intel® Q370 Chipset
- 2 x DDR4 SODIMM socket, Max. 64GB
- Multiple Independent display: HDMI, DP
- 5 x Intel GbE LAN, 4 x USB 3.1, 2~4 x COM
- DIO (optional), 1 x M.2 B Key, 1 x Mini PCIe, 1 x PCIe slot
| MODEL | APOLLO-RS 3I370DW (OEM) | |
|---|---|---|
| System Dimension(WxDxH) | 230 x 109 x 173 mm | |
| Weight(Incl.M/B) | 3.8 kg | |
| Mounting | Wall Mount * | |
| CPU | 8th / 9th Gen Coffee Lake-S i7 / i5 / i3 CPU | |
| Chipset | Intel® Q370 | |
| Memory | 2 x DDR4 SODIMM socket, Max. 64GB | |
| Storage | mSATA, HDD / SSD*, M.2, 2 x CFast (OEM) | |
| Expansion slots | 1 x Full-size Mini PCIe (PCIe / mSATA / USB 3.0 / 2.0) 1 x M.2 Bkey Type 3042 (PCIe x2 / mSATA / USB 3.0 / 2.0) 1 x PCIe slot |
|
| I/O ports | Network | 5 x Intel GbE (1 x I219LM + 4 x I225) |
| USB | 4 x USB 3.1 | |
| Serial ports | 2~4 x RS232 / 422 / 485 | |
| DIO | 16DI / 16DO (optional to COM port) | |
| Display | 1 x DP, 1 x HDMI | |
| Optional Modules & Accessory |
GPS, Bluetooth, PoE, WiFi, 4G LTE, Isolated COM, battery UPS, DI / DO, Video Input, SATA to CFast, *SATA Kit , Wall Mount Kit |
|
| Power | DC input : +12~36V AC input : External adapter 100 / 240V AC-DC 120W |
|
| Operating Temp. (100 % CPU usage) |
-20°C to +50°C (Core i7 8700T) *W / Industrial SSD |
|
| Storage Temp. | -20°C to +70°C | |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above |
|
