强固型嵌入式电脑

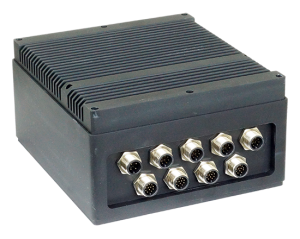

SealPro 2 - 2I130HW
Rugged IP66/67 Fanless Embedded Computer
with 13th / 12th Gen Intel® Core™ Processor
with 13th / 12th Gen Intel® Core™ Processor
概览
SealPro 2-2I130HW 是一款极致精巧（142W x 155D x 80H mm）且无风扇的强固型电脑，专为最严苛环境下的关键任务与空间受限应用而生。搭载 第 13 代 Intel® Core™ 处理器，利用其集成式 AI 加速技术，在边缘端提供高性能的智能计算。
本系统专为承受军事、铁路及重工业运行的严酷考验而设计，具备强韧的 IP67 等级机壳，并提供高达 9 组可自定义的 M12 接口。这些防震接口——包含 2.5GbE、USB 与 COM 端口——确保在极端冲击与震动下仍能维持绝对可靠 (Fail-safe) 的连接。通过支持 Wi-Fi 6 与 4G/5G 模块的 M.2 扩展槽，SealPro 2 确保自主系统与边缘网关在任何地形下，都能实现无缝且实时的数据传输。
特点
- Intel® 13th Gen Raptor Lake-P / U i7 / i5 / i3, Pentium CPU
- Intel® 12th Gen Alder Lake-P / U i7 / i5 / i3, Celeron CPU
- 1 x DDR5 SODIMM (Max. 32GB)
- Selectable max up to 9 x M12 I/O :
- 1 x HDMI®, 1 x eDP / LVDS, 2 x Intel 2.5 GbE LAN
- 4 x USB 3.2 Gen 1 x 1, 4 x USB 2.0, 2 x COM
- 4DI /4DO, Audio, SMBus, Wide Range +9-36V DC-IN
- 1 x Mini PCIe, 1 x M.2 B Key
| MODEL | SealPro 2-2I130HW | |
|---|---|---|
| Motherboard | 2I130HW | |
| System Dimension(WxDxH) | 142W x 155D x 80H mm | |
| Weight | 2.11 Kg | |
| Mounting | VESA Mount | |
| CPU | Intel® Core™ 13th Gen Raptor Lake-P/U, i7 / i5 / i3, Pentium CPU Intel® Core™ 12th Gen Alder Lake-P/U, i7 / i5 / i3, Celeron CPU |
|
| Chipset | Intel® Raptor Lake / Alder Lake SoC | |
| Memory | 1 x DDR5 SODIMM socket, Max. 32GB | |
| Storage | M.2-SSD, HDD / SSD | |
| Expansion slots | 1 x Full Size Mini PCIe (PCIe / SATA / USB 2.0) 1 x M.2 B key Type 2242 (PCIe x2 / USB 2.0), Support NVMe |
|
| Selectable max up to 9 x M12 I/O | Network | 2 x Intel 2.5GbE I226-IT |
| USB | 4 x USB 3.2 Gen 1 x 1, 4 x USB 2.0 | |
| SMBus | 1 x SMBus | |
| DIO | 4DI / 4DO | |
| DC-IN | 1 x Wide Range +9~36V DC-IN | |
| Serial ports | 2 x RS232 / 422 / 485 | |
| Display | 1 x HDMI® ; 1 x VGA | |
| Audio | 1 x Audio | |
| Optional Modules & Accessory |
*VESA Mounting Kit Module, * DP001 : eDP to VGA module | |
| Power | DC input : Wide Range +9~36V | |
| Operating Temp. (100 % CPU usage) | -40°C ~ +70°C (under specific environmental & CPU power consumption conditions) |
|
| Storage Temp. | -40°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| Waterproof rating | IP66 / 67 | |
| Certification | CE / FCC class A | |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above | |
