不断电主板

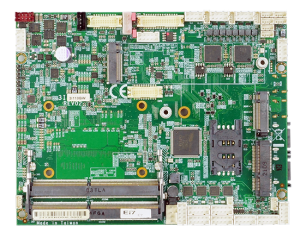

3I110HW / 3I110BW
i7 / i5 / i3 / Celeron CPU, VGA, HDMI (or DP),
eDP / LVDS, 3 x Intel Gb Ethernet,
Audio, 2 x M.2, Touch Screen controller, 4DI / 4DO, 6 x USB,
4 x COM, 1 x Mini PCIe, 1 x SIM, Battery Charger, SMBus
概览
LEX SYSTEM 3.5” 工业嵌入式主板3I110HW/BW 配备第11 代Intel® Tiger Lake-UP3 i7/i5/i3/Celeron 处理器，专为边缘视觉运算而设计。全新整合的高效能、低功耗SoC，更结合AI加速功能，进一步提升边缘运算中 AI人工智慧的效能，轻松、精准地处理电脑视觉、高工作负载等复杂运算的应用。3I110HW/BW, 配备 3 x GbE, 4 x RS232/RS422/485 串口, 7 x USB, 4 DI /4 DO, DP, HDMI ,VGA & LVDS with 1 x mPCIe, 2 x M.2 and 1 x SIM 扩展槽。 3I110HW/BW 的全針腳I/O端子 设计为扩展功能提供了高度的灵活性，并且还为用户提供了将 SBC 板集成到各种机械外壳中的无忧解决方案。加上电池充电器功能，该平台非常适合可靠性和移动性受限的 AIoT 应用，例如医疗视频分析、智能交通、工厂自动化和边缘 AI 解决方案。
特点
- 11th Gen Intel® Tiger Lake-UP3,
i7 / i5 / i3 / Celeron CPU - 2 x DDR4 SODIMM (Max. 64GB)
- Multiple Independent display:
VGA, HDMI (or DP), eDP or LVDS - 3 x Intel GbE LAN, 6 x USB 2.0
- 4 x COM, 4DI / 4DO, 1 x Mini PCIe, 1 x SIM
- 1 x M.2 B Key, 1 x M.2 M Key
- TPM 2.0 (Firmware), SMBus
- Battery Charger Function (3I110BW)
- OEM Option:
DP (Type C),
1 x PCIe x 1 (Type C*)
*LEX-defined Type C pin configuration
| MODEL | 3I110HW / 3I110BW |
|---|---|
| CPU Type | Intel® Tiger Lake-UP3, i7 / i5 / i3 / Celeron CPU |
| MB Chipset | Intel® Tiger Lake-UP3 SoC |
| Graphics | Intel® Iris® Xe Graphics and media encode / decode engine Intel® UHD Graphics, Support DirectX 12 & OpenGL 4.5 |
| System Memory | 2 x DDR4 SODIMM, Max 64GB |
| Storage | 2 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) 1 x M.2 B key Type 3042 (PCIe x2 / mSATA / USB 3.0 / 2.0)-share SATA2 1 x M.2 M key Type 2280 (PCIe x4), Support NVMe |
| BIOS | AMI UEFI BIOS |
| Display | 1 x VGA, 1 x HDMI (or DP), eDP or Dual Channel, 48 bits LVDS |
| Touch | USB touch screen controller |
| TPM | TPM 2.0 (Firmware) ; OEM Optional to Hardware TPM |
| LAN | 1 x Intel GbE I219LM (internal) 2 x Intel 2.5 GbE I225-IT (internal) w/Core CPU or 2X I225-V w/Celeron CPU |
| Audio | High Definition Audio Specification, Support Line-out / Mic-in / Line-in Two channel Class D Audio Amplifier |
| Expansion Interface | 1 x Full size Mini PCIe (PCIe / USB 2.0) 1 x M.2 B key Type 3042 (PCIe x2 / mSATA / USB 3.0 / 2.0) 1 x M.2 M key Type 2280 (PCIe x4), Support NVMe 1 x SIM |
| Expansion Options |
CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT |
| USB | 6 x USB 2.0 (internal) |
| Serial IO |
4 x RS232 / 422 / 485 (internal) *COM1~COM4 pin9 5V / 12V (Option) |
| GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
| SMBus | 1 x SMBus |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | Wide Range +9~36V ; Battery Charger function (3I110BW) |
| Dimension | 3.5" Plus (146 x 115 mm) ; Weight: 138g |
| Operation Temperature (100 % CPU Usage) |
-40°C~+70°C (Core i GRE series CPU) -20°C~+70°C (Core i G7E / G7 series CPU) |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above |
