单板电脑

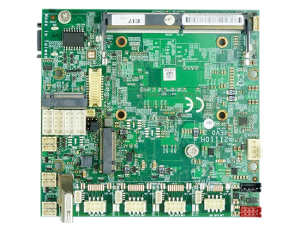

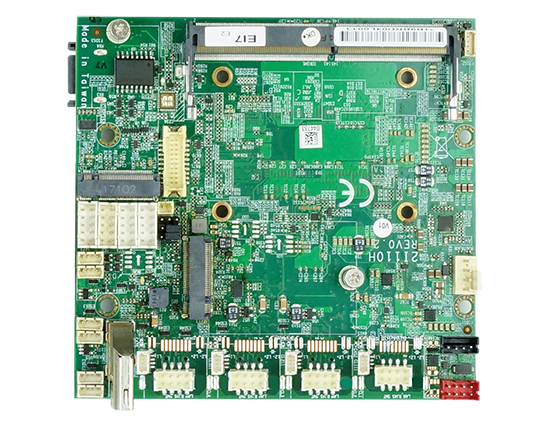

2I110H

2.5" Plus SBC 支持 Intel® 11th Gen Tiger Lake-UP3 i7 / i5 / i3, Celeron CPU,
HDMI, eDP, 4 x Intel Gb Ethernet, 2 x M.2, 1 x Nano SIM
4DI / 4DO, 3 x USB 3.2, 6 x USB 2.0, 2 x COM, SMBus

概览

LEX SYSTEM 2I110H 采用第 11 代 Intel® Tiger Lake-UP3 i7/i5/i3/Celeron 处理器,专为人工智能计算而设计的 2.5吋主板。配备针脚I/O: 4 x GbE LAN 网口（3 x 2.5G 和 1x GbE）和 3 x USB 3.2、6 x USB 2.0、2 x 串口和 M.2 B-key 支持 NANO SIM 与支持 NVMe 的 M.2 M- key，具有高度的扩展能力灵魂活性，并且还为用户提供了将SBC板集到各种机械外壳中的无障碍解决方案。

特点

11th Gen Intel® Tiger Lake-UP3, i7 / i5 / i3 / Celeron CPU
1 x DDR4 SODIMM (Max. 32GB)
Multiple Independent display: eDP, 1 x HDMI
4 x Intel GbE LAN, 3 x USB 3.2 (type A), 6 x USB 2.0
2 x COM, 4DI / 4DO, 1 x Nano SIM
1 x M.2 B Key, 1 x M.2 M Key
TPM 2.0, SMBus

Watch Video

2I110H Datasheet

MODEL	2I110H
CPU	Intel® Tiger Lake-UP3, i7 / i5 / i3 / Celeron CPU
MB Chipset	Intel® Tiger Lake-UP3 SoC
Graphics	Intel® UHD Graphics, Support DirectX 12 & OpenGL 4.5
System Memory	1 x DDR4 3200 MHz SODIMM, Max 32GB
Storage	1 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) 1 x M.2 B key Type 3042 (PCIe x2 / USB 3.0 / 2.0) 1 x M.2 M key Type 2242 (PCIe x4 / SATA), Support NVMe
BIOS	AMI UEFI BIOS
Display	1 x HDMI, 1 x eDP ; optional to VGA or DVI or HDMI
TPM	TPM 2.0 (Firmware) ; OEM Optional to Hardware TPM
LAN	1 x Intel GbE I219LM (internal) 3 x Intel 2.5 GbE I225 (internal)
Expansion Interface	1 x M.2 B key Type 3042 (PCIe x2 / USB 3.2 / 2.0), 1 x Nano SIM 1 x M.2 M key Type 2242 (PCIe x4 / SATA), Support NVMe
Expansion Options	CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT CN067 : M.2 B key 2242 to M.2 B Key 2252, 4G / 5G (3.7V by BOM Control) CN059 : USB to Line-out / Mic- in CC007 : USB to 4 port COM CIO116G : SMBus to 8DI + 8DO PW351 : 1 port PoE PSE PW352 : 2 port PoE PSE PW301 : 802.3AF / AT PD module PW205 : Wide Range power board (9~36V) with power Ignition on/off delay PW206 : 12V / 24V DC to DC Redundant Power Board PW022 : Wide Range power board (24V / 48V) DP001 : eDP to VGA 　 eDP003 : eDP to DVI 　 eDP004 : eDP to HDMI eDP001 : eDP to LVDS (OEM)
USB	3 x USB 3.2 (Type A) 6 x USB 2.0 (internal)
Serial IO	2 x RS232 / 422 / 485 (internal) ; eSPI *COM1, COM2 pin9 5V / 12V (Option)
GPIO	Hardware digital Input & Output, 4 x DI / 4 x DO
SMBus	1 x SMBus
WDT	Hardware Watch Dog Timer, 0~255 sec programmable
Power Input	DC IN +12V
Dimension	2.5" Plus (108 x 102 mm)
Operation Temperature	-40°C~+70°C (Core i GRE series CPU) -20°C~+70°C (Core i G7E / G7 series CPU)
Operation Humidity	5~95%, non-condensing
OS Support	Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above
