单板电脑

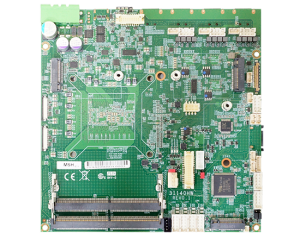

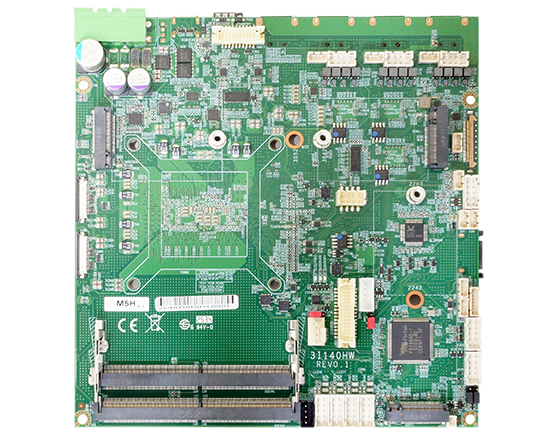

3I140HW

3.5" Embedded SBC 支持 Intel® Core™ Ultra processors
(Meteor Lake-U/H) (Arrow Lake-U/H)
1 x HDMI®, LVDS/eDP, 1 x Type C, 3 x Intel 2.5Gb Ethernet,
3 x M.2, 1 x High Speed Connector (PCIe x2)
4DI/4DO, 4 x USB3.2, 3 x USB 2.0, 4 x COM, 1 x Nano SIM,
2 x MIPI-CSI-2,Audio

概览

LEX SYSTEM 3I140HW 是一款 3.5 英寸 Plus 单板计算机，搭载Intel® Core™ Ultra 7/5 系列处理器（Meteor Lake-U/H）（Arrow Lake-U/H），提供高性能边缘计算与人工智能计算能力。凭借英特尔最新的图形架构和最高 64GB DDR5 内存，3I140HW 可确保增强的图形与计算性能。它提供 3 个 2.5GbE LAN 接口、宽范围 9–36VDC 输入、HDMI、LVDS/eDP、1 x Type C 、2 个 MIPI-CSI-2、高清音频、4 个 USB 3.2（Type A）、3 个 USB 2.0、4 个串口、3 个 M.2 插槽以及 1 个高速 PCIe x2 接口。通过灵活的 Wafer 型 I/O，3I140HW 可轻松集成至多种机械外壳中，提供多功能嵌入式解决方案。

特点

Intel® Core™ Ultra 7/5 Series processors
(Meteor Lake-U/H) (Arrow Lake-U/H)
2 x DDR5 SODIMM (Max.64GB)
Multiple Independent display:
1 x HDMI®, LVDS/eDP, 1 x Type C
3 x Intel 2.5 GbE LAN, 4 x USB 3.2 Gen 1x1, 3 x USB 2.0
1 x M.2 M Key, 2 x M.2 BKey, 1 x Nano SIM, 4 x COM
1 x High Speed Connector (PCIe x2), 4DI/4DO, Audio
2 x MIPI-CSI-2, TPM 2.0, SMBus, I2C

3I140HW Datasheet

MODEL	3I140HW
CPU	Intel® Core™ Ultra 7/5 Series processors (Meteor Lake-U/H) (Arrow Lake-U/H)
Chipset	Intel® Arc™ graphics ; Intel® UHD Graphics
System Memory	2 x DDR5 SODIMM, Max 64GB
Storage	1 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) 1 x M.2 M key Type 2280 (PCIe x4), Support NVMe
BIOS	AMI UEFI BIOS
Display	1 x HDMI® (internal) ; 1 x LVDS or eDP, 1 x Type C
TPM	Hardware TPM 2.0 ; OEM Optional to Firmware TPM 2.0
LAN	3 x Intel 2.5GbE I226-IT (internal)
Audio	High Definition Audio Specification, Support Line-out / Mic-in / Line-in Two channel Class D Audio Amplifier
Expansion Interface	1 x M.2 M key Type 2280 (PCIe x 4), Support NVMe, (OEM to Type 3042) 1 x M.2 B key Type 3042 (USB3.2 Gen 1x1 / USB2.0) (OEM to Type 3052) 1 x M.2 B key Type 3042 (PCIe / SATA / USB 2.0) 1 x Nano SIM 1 x High Speed connector (PCIe x2)
Expansion Module	Converter Card: CN064: M.2 B Keyto M.2 E Key 2230, WiFi 6 + BT
USB	4 x USB 3. 2 Gen 1 x 1 (external) 1 x Type C USB 3. 2 Gen 1 x 1 (external) (No USB-PD Support) ; 3 x USB 2.0 (internal)
Serial IO	4 x RS232 / 422 / 485 (internal) ; eSPI *COM1~ COM4 pin9 5V / 12V (Option)
MIPI-CSI	2 x MIPI-CSI-2 D-PHY
SMBus / I2C / I2S	1 x SMBus ; 1 x 12C ; 1 x I2S (OEM)
GPIO	Hardware digital Input & Output, 4 x DI / 4 x DO
WDT	Hardware Watch Dog Timer, 0~255 sec programmable
Power Input	Wide Range DC IN +9~36V
Dimension	3.5" Plus (146 x 150 mm) ; Weight: 180g
Operation Temperature (100 % CPU Usage)	-20°C~70°C (under specific environmental & CPU power consumption conditions)
Operation Humidity	5~95%, non-condensing
Chassis (OEM I/O Expansion by request)	Waterproof system, panel pc
OS Support	Windows 10 / 11 (64bit) Linux Ubuntu 22.04 / Kernel 5.15
