单板电脑
2I110AW + Hailo-8™ AI module
2.5" Plus Embedded SBC 支持 Intel® 11th Gen Tiger Lake,
-UP3 i7 / i5 / i3, Celeron CPU, 4 x HDMI,
3 x Intel 2.5Gb Ethernet, 2 x M.2, 1 x Nano SIM,
4DI / 4DO, 2 x USB 3.0, 4 x USB 2.0, 2 x COM, SMBus,
Pre-installed M.2 Hailo-8™ AI Accelerator
-UP3 i7 / i5 / i3, Celeron CPU, 4 x HDMI,
3 x Intel 2.5Gb Ethernet, 2 x M.2, 1 x Nano SIM,
4DI / 4DO, 2 x USB 3.0, 4 x USB 2.0, 2 x COM, SMBus,
Pre-installed M.2 Hailo-8™ AI Accelerator
概览
LEX SYSTEM 2I110AW 为 2.5 英寸（108 x 102 毫米），尺寸紧凑的嵌入式SBC，采用第 11 代 Intel® Core™ i7i5/i3 处理器（前身为 Tigert Lake UP3）具备高效能、低功耗SoC，更结合AI加速功能，提供使用者处理电脑视觉、高工作负载等复杂运算的应用。 2I110AW 通过 4 个 USB 2.0、2 个 USB 3.0、2 个 COM 和 2 个 M.2 插槽（支持 NVMe）等扩充介面和4个 HDMI 最高4K影像显示，为关键业务数据操作提供可靠的处理。

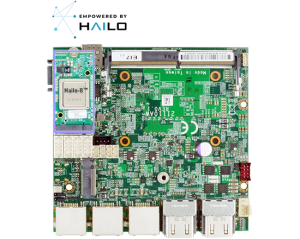

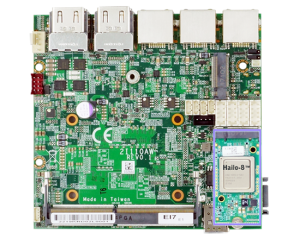

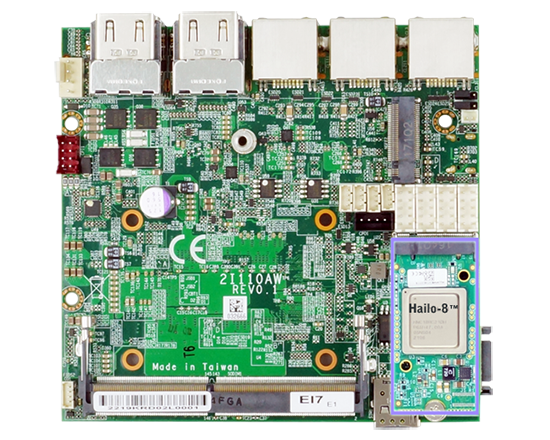

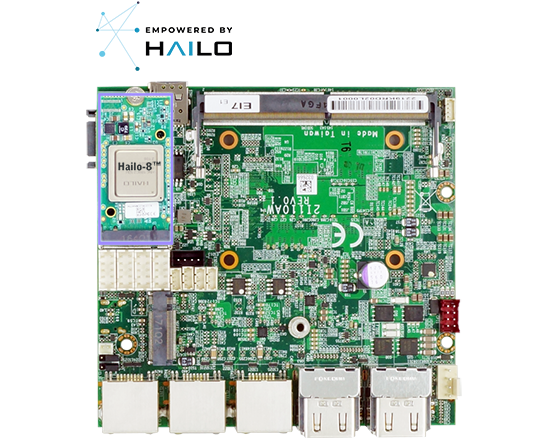

此外，通过采用M.2插槽，2I110 AW可以轻松安装Hailo-8™ AI加速模块，用于AI应用。Hailo-8™ AI 模块与 2I110 AW 的高度兼容性最大限度地发挥边缘 AI 的功能并帮助客户加快上市时间。 2I110 AW 与 Hailo-8™ 模块的配对使开发人员能够以更低的功耗运行复杂的深度学习和机器视觉应用程序，适用于智能交通、工厂自动化和远程医疗应用程序。
特点
- 11th Gen Intel® Tiger Lake-UP3, i7 / i5 / i3 / Celeron CPU
- Pre-installed M.2 Hailo-8™ AI Accelerator
- 1 x DDR4 SODIMM (Max. 32GB)
- Multiple Independent display: 4 x HDMI

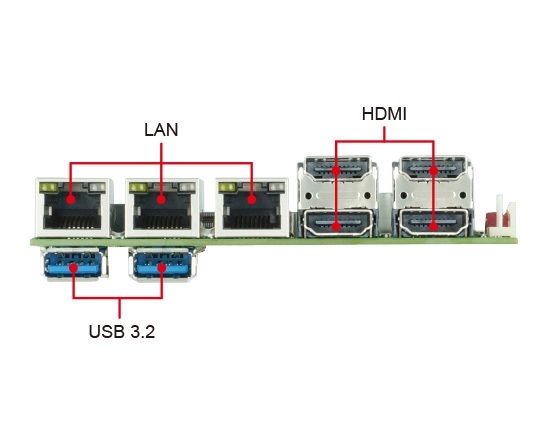

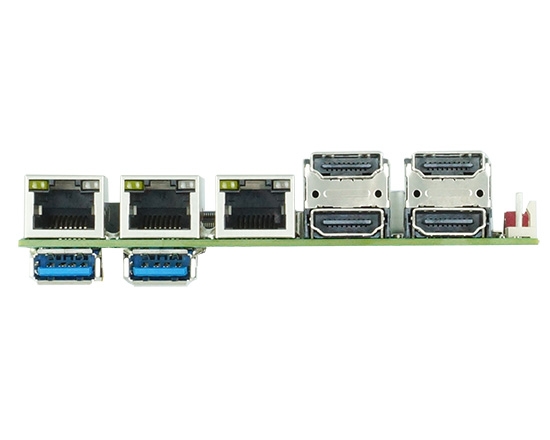

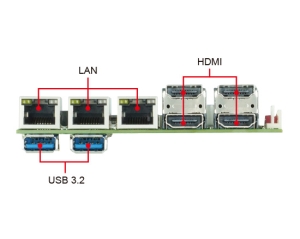

- 3 x Intel 2.5 GbE LAN, 2 x USB 3.0 (type A), 4 x USB 2.0
- 2 x COM, 4DI / 4DO, 1 x Nano SIM
- 1 x M.2 B Key, 1 x M.2 M Key
- TPM 2.0, SMBus
| MODEL | 2I110AW + Hailo-8™ AI module |
|---|---|
| CPU | Intel® Tiger Lake-UP3, i7 / i5 / i3 / Celeron CPU |
| MB Chipset | Intel® Tiger Lake-UP3 SoC |
| Graphics | Intel® UHD Graphics, Support DirectX 12 & OpenGL 4.5 |
| System Memory | 1 x DDR4 3200 MHz SODIMM, Max 32GB |
| Storage | 1 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) 1 x M.2 M key Type 2242 (PCIe x4 ), Support NVMe, -optional to SATA |
| BIOS | AMI UEFI BIOS |
| Display | 4 x HDMI |
| TPM | TPM 2.0 (Firmware) |
| LAN | 3 x Intel 2.5 GbE I225-IT (external) w/Core CPU or 3X I225-V w/Celeron CPU |

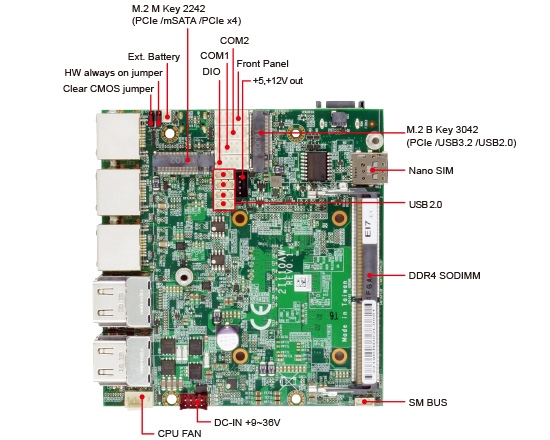

| Expansion Interface | 1 x M.2 B key Type 3042 (PCIe / USB 3.0 / 2.0), 1 x M.2 M key Type 2242 (PCIe / mSATA / PCIe x4), Support NVMe, 1 x Nano SIM |
| Expansion Options | CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT CN067 : M.2 B key 2242 to M.2 B Key 2252, 4G / 5G (3.7V by BOM Control) CN059 : USB to Line-out / Mic- in CC007 : USB to 4 port COM CIO116G :SMBus to 8DI + 8DO PW351 : 1 port PoE PSE PW352 : 2 port PoE PSE PW301 : 802.3AF / AT PD module PW205 : Wide Range power board (9~36V) with power Ignition on/off delay PW206 : 12V / 24V DC to DC Redundant Power Board PW022 : Wide Range power board (24V / 48V) |
| USB | 2 x USB 3.0 (Type A) 4 x USB 2.0 (internal) |
| Serial IO |
2 x RS232 / 422 / 485 (internal) ; eSPI *COM1, COM2 pin9 5V / 12V (Option) |
| GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
| SMBus | 1 x SMBus |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | Wide Range DC IN +9~36V |
| Dimension | 2.5" Plus (108 x 102 mm) |
| Operation Temperature (100% CPU Usage) | -40°C~70°C (Core i GRE series CPU) -20°C~70°C (Core i G7E / G7 series CPU) (100% CPU Usage, not-underclocking) |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) | Box PC: SKY 2 |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Ubuntu 22.04 host OS, Hailo SW via Ubuntu container |
