单板电脑

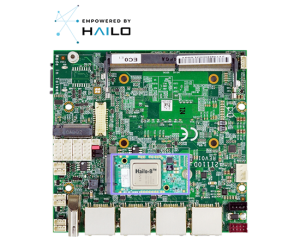

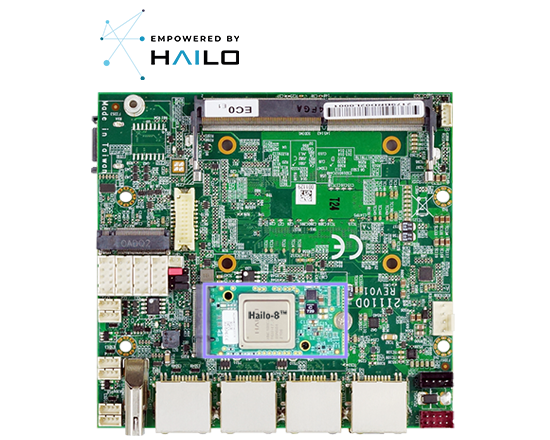

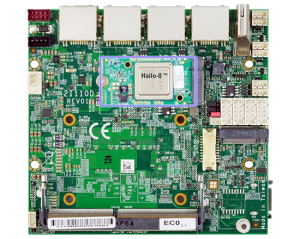

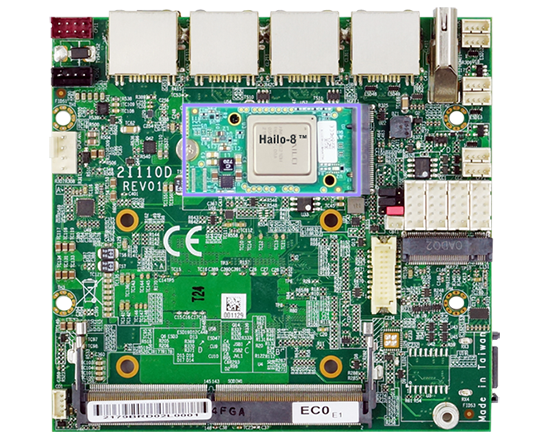

2I110D + Hailo-8™ AI module
2.5" Plus SBC 支持 Intel® 11th Gen Tiger Lake-UP3 i7 / i5 / i3,
Celeron CPU, HDMI, eDP, 4 x Intel Gb Ethernet, 2 x M.2,
1 x Nano SIM, 4DI / 4DO, 3 x USB 3.2, 6 x USB 2.0,
2 x COM, SMBus
Pre-installed M.2 Hailo-8™ AI Accelerator
Celeron CPU, HDMI, eDP, 4 x Intel Gb Ethernet, 2 x M.2,
1 x Nano SIM, 4DI / 4DO, 3 x USB 3.2, 6 x USB 2.0,
2 x COM, SMBus
Pre-installed M.2 Hailo-8™ AI Accelerator
概览
LEX SYSTEM 2I110D 是第 11 代Intel® Tiger Lake-UP3 i7/i5/i3/Celeron 处理器，专为边缘视觉运算而设计。全新整合的高效能、低功耗SoC，更结合AI加速功能，进一步提升边缘运算中 AI人工智慧的效能，轻松、精准地处理电脑视觉、高工作负载等复杂运算的应用。 2I110D 还提供高速 I/O 端口，包括 4 x GbE LAN 端口（3 x 2.5G 和 1x GbE）、3 x USB 3.2、6 x USB 2.0、2 x 串口和 1 x M.2 B-key与 Nano SIM和支持 NVMe的1 x M.2 M-key插槽。
此外，通过采用M.2插槽，2I110D可以轻松安装Hailo-8™ AI加速模块，用于AI应用。Hailo-8™ AI 模块与 2I110D 的高度兼容性最大限度地发挥边缘 AI 的功能并帮助客户加快上市时间。 2I110D 与 Hailo-8™ 模块的配对使开发人员能够以更低的功耗运行复杂的深度学习和机器视觉应用程序，适用于智能交通、工厂自动化和远程医疗应用程序。
特点
- 11th Gen Intel® Tiger Lake-UP3, i7 / i5 / i3 / Celeron CPU
- Pre-installed M.2 Hailo-8™ AI Accelerator
- 1 x DDR4 SODIMM (Max. 32GB)
- Multiple Independent display: HDMI, eDP
- 4 x Intel GbE LAN, 3 x USB 3.2 (type A), 6 x USB 2.0
- 2 x COM, 4DI / 4DO, 1 x Nano SIM
- 1 x M.2 B Key, 1 x M.2 M Key
- TPM 2.0, SMBus
| MODEL | 2I110D + Hailo-8™ AI module |
|---|---|
| CPU | Intel® Tiger Lake-UP3, i7 / i5 / i3 / Celeron CPU |
| MB Chipset | Intel® Tiger Lake-UP3 SoC |
| Graphics | Intel® UHD Graphics, Support DirectX 12 & OpenGL 4.5 |
| System Memory | 1 x DDR4 3200 MHz SODIMM, Max 32GB |
| Storage | 1 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) 1 x M.2 B key Type 3042 (PCIe x2 / USB 3.0 / 2.0) 1 x M.2 M key Type 2242 (PCIe x4 / SATA), Support NVMe |
| BIOS | AMI UEFI BIOS |
| Display | 1 x HDMI, eDP |
| TPM | TPM 2.0 (Firmware) ; OEM Optional to Hardware TPM |
| LAN | 1 x Intel GbE I219LM (external) 3 x Intel 2.5 GbE I225-IT (external) w/Core CPU or 3X I225-V w/Celeron CPU |
| Expansion Interface | 1 x M.2 B key Type 3042 (PCIe x2 / USB 3.2 / 2.0), 1 x Nano SIM 1 x M.2 M key Type 2242 (PCIe x4 / SATA), Support NVMe |
| Expansion Options | CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT CN067 : M.2 B key 2242 to M.2 B Key 2252, 4G / 5G (3.7V by BOM Control) CN059 : USB to Line-out / Mic- in CC007 : USB to 4 port COM CIO116G : SMBus to 8DI + 8DO PW351 : 1 port PoE PSE PW352 : 2 port PoE PSE PW301 : 802.3AF / AT PD module PW205 : Wide Range power board (9~36V) with power Ignition on/off delay PW206 : 12V / 24V DC to DC Redundant Power Board PW022 : Wide Range power board (24V / 48V) DP001 : eDP to VGA eDP003 : eDP to DVI eDP004 : eDP to HDMI eDP001 : eDP to LVDS (OEM) |
| USB | 3 x USB 3.2 (Type A) 6 x USB 2.0 (internal) |
| Serial IO |
2 x RS232 / 422 / 485 (internal) ; eSPI *COM1, COM2 pin9 5V / 12V (Option) |
| GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
| SMBus | 1 x SMBus |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | DC IN +12V |
| Dimension | 2.5" Plus (108 x 102 mm) |
| Operation Temperature (100 % CPU Usage) |
-40°C~+70°C (Core i GRE series CPU) -20°C~+70°C (Core i G7E / G7 series CPU) |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) | Box PC: SKY 2 |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Ubuntu 22.04 host OS, Hailo SW via Ubuntu container |
