嵌入式电脑系统
PCIe / PCI扩展功能的电脑系统
PCIe / PCI扩展功能的电脑系统

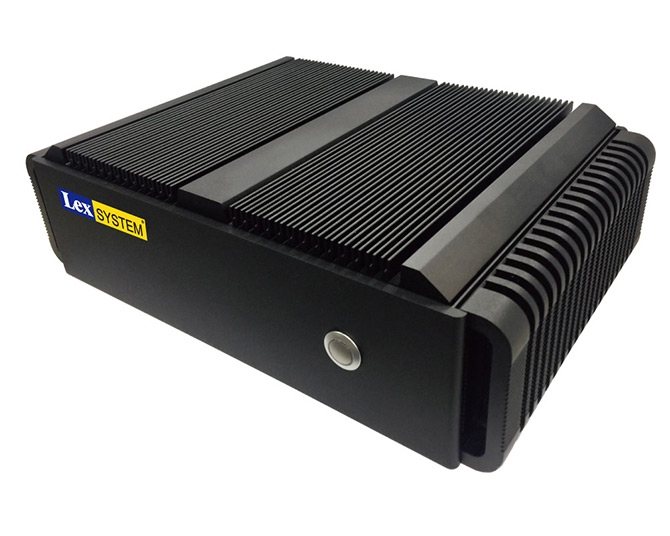

TWISTER - CI170C
Embedded Computer with 6th / 7th Gen
Intel® Skylake-S / Kaby Lake-S i7 / i5 / i3 processor
Intel® Skylake-S / Kaby Lake-S i7 / i5 / i3 processor
特点
- 6th / 7th Gen Intel® Skylake-S /
Kaby Lake-S i7 / i5 / i3 CPU / Q170 Chipset - 2 x DDR4 SODIMM socket, Max. 64GB
- Multiple Independent display: DP, HDMI & DVI
- 5 x Intel GbE LAN, 4 x USB 3.0, 5 x COM
- 1 x PCIe x 16, 2 x Mini PCIe, 1 x M.2, 2 x SIM
| MODEL | TWISTER-CI170C | |
|---|---|---|
| System Dimension(WxDxH) | 300W x 200D x 85H mm | |
| Weight(Incl.M/B) | 2.9 kg | |
| CPU | 6th / 7th Gen Intel® Skylake-S / Kaby Lake-S i7 / i5 / i3 CPU | |
| Chipset | Intel® Q170 | |
| Memory | 2 x DDR4 SODIMM, Max. 64GB | |
| Storage | mSATA, M.2, HDD / SSD* | |
| Expansion slots | 1 x PCIe x 16 1 x Full-size Mini PCIe (PCIe / mSATA / USB) 1 x Full-size Mini PCIe (PCIe / USB) 2 x SIM |
|

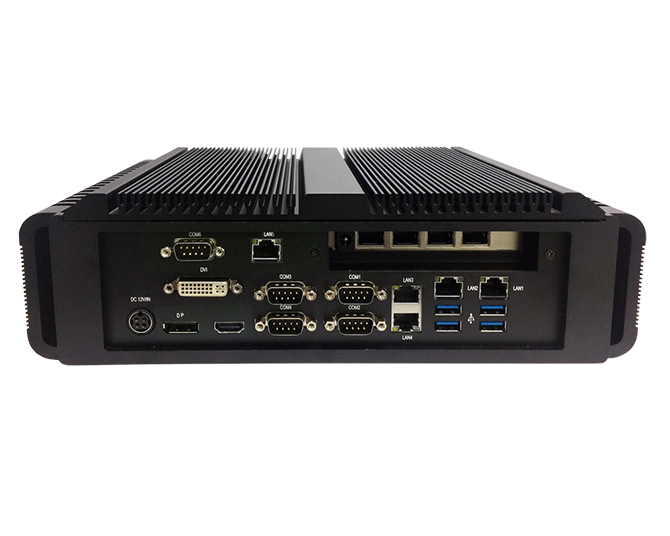

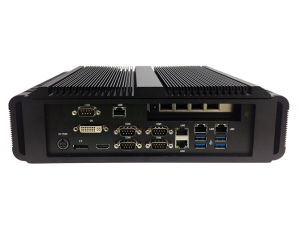

| I/O ports | Network | 5 x Intel GbE |
| USB | 4 x USB 3.0 | |
| Serial ports | 5 x RS232 / 422 / 485 | |
| Display | 1 x DP, 1 x HDMI, 1 x DVI | |
| Optional Modules & Accessory |
GPS, Bluetooth, PoE, WiFi, 4G LTE, Isolated COM, battery UPS, DI/DO, Video Input *SATA Kit, *Wall Mount Kit, *VESA Mount Kit |
|
| Power | DC input : +12V AC input : External adapter 100 / 240V AC-DC 84W |
|
| Storage Temp. | -20°C to +50°C (Core i7 6700 TE) -20°C to +40°C (Core i7 6700) *W / Industrial SSD |
|
| Relative Humidity | 95% @ 40°C, non-condensing | |
| OS Support |
7th Generation Intel® Core™ Processor family: Kaby Lake Windows® 10 IOT (64bit), 6th Generation Intel® Core™ Processor family: Skylake Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit), |
|
