导轨式系统

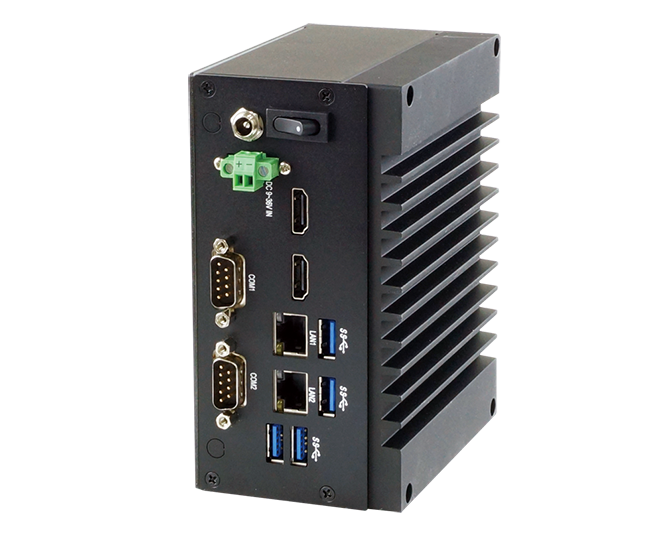

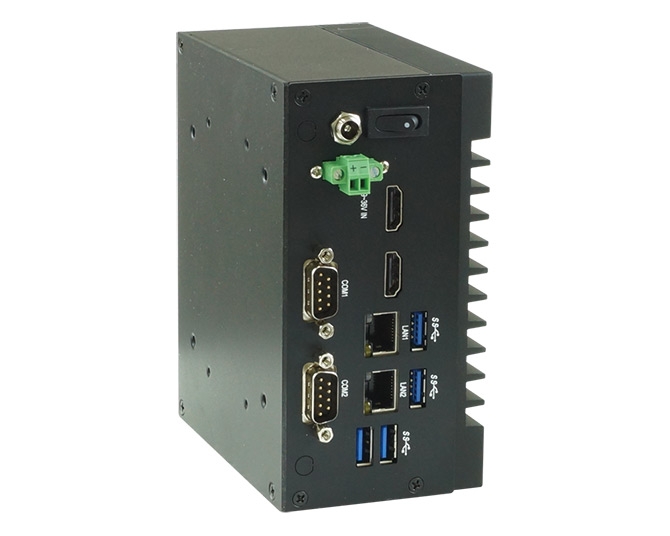

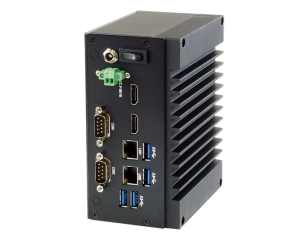

SKY 2 - 2I612CW
Compact Fanless Embedded Computer
with 6th / 7th Gen Intel® Skylake-U /
Kaby Lake-U i7 / i5 / i3 processor
with 6th / 7th Gen Intel® Skylake-U /
Kaby Lake-U i7 / i5 / i3 processor
特点
- 6th / 7th Gen Intel® Skylake-U /
Kaby Lake-U i7 / i5 / i3 processor - 1 x DDR4 SODIMM socket, Max. 32GB
- Independent display: 2 x HDMI (OEM to DP)
- 2 x Intel GbE LAN, 4 x USB 3.0, 2 x COM
- 2 x Mini PCIe, 4DI / 4DO (Option)
| MODEL | SKY 2-2I612CW | |
|---|---|---|
| System Dimension(WxDxH) | 141W x 111.2D x 71.9H mm | |
| Weight(Incl.M/B) | 1.36 kg | |
| Mounting | VESA Mount* (VESA 75), DIN-Rail Mount*, Wall Mount* | |
| CPU | 6th / 7th Gen Intel® Skylake-U / Kaby Lake-U CPU | |
| Chipset | Intel® Skylake-U / Kaby Lake-U SoC | |
| Memory | 1 x DDR4 SODIMM socket, Max. 32GB | |
| Storage | mSATA, HDD / SSD* | |
| Expansion slots | 1 x Full-size Mini PCIe (mSATA / USB) 1 x Full-size Mini PCIe (PCIe / USB 2.0) |
|
| I/O ports | Network | 2 x Intel GbE |
| USB | 4 x USB 3.0 | |
| Serial ports | 2 x RS232 / 422 / 485 | |
| Display | 2 x HDMI | |
| DIO | 4DI /4DO (Option) | |
| Optional Modules & Accessory |
GPS, Bluetooth, PoE, WiFi, 4G LTE, Isolated COM, battery UPS, DI / DO, Video Input *VESA Mounting Kit, DIN Rail Mounting Kit, *Wall Mount Kit *SATA Kit, External power adapter |
|
| Power | DC input : +9V~36V AC input : External AC-DC adapter 100 / 240V (optional) |
|
| Operating Temp. (100 % CPU usage) |
-20°C to +60°C (Celeron 3955U) -20°C to +50°C (Core i5 6300U) -20°C to +50°C (Core i7 6600U) -20°C to +50°C (Core i3 6100U) *W / Industrial SSD |
|
| Storage Temp. | -20°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| OS Support |
7th Generation Intel® Core™ Processor family: Kaby Lake Windows® 10 IOT (64bit), 6th Generation Intel® Core™ Processor family: Skylake Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit), |
|
