产品类别
导轨式系统
边缘人工智能 & 视觉学习

SKY 2 - 2I110D + Hailo-8™

Computing Vision IPC w /
11th Gen Intel® Core i Series CPU &
Pre-installed M.2 Hailo-8™ AI Accelerator

概览

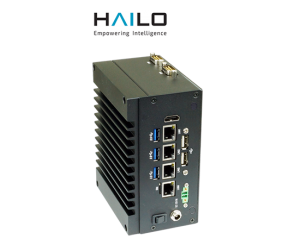

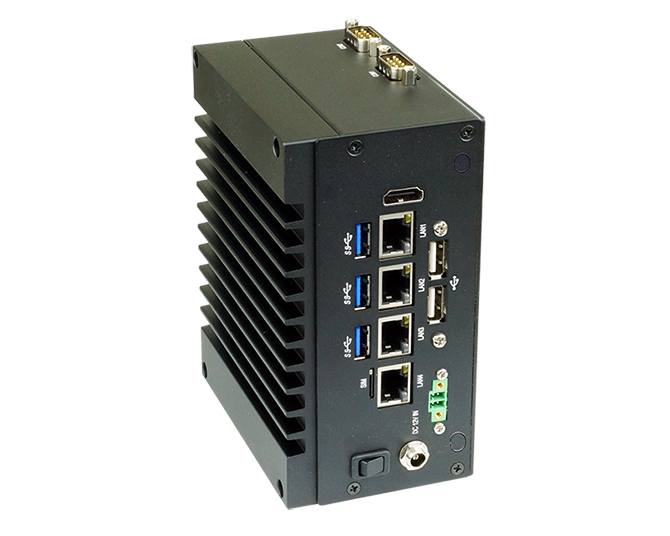

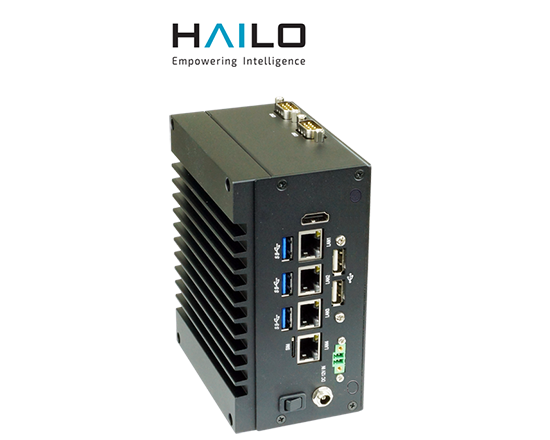

SKY 2 2I110D 是一款紧凑型无风扇 DIN-Rail 导轨计算机，尺寸仅为 71.9 x 111.2 x 141 毫米。它采用第 11 代 Intel® Tiger Lake-UP3 i7/i5/i3/Celeron 处理器，旨在提供强大的边缘人工智能解决方案。


SKY 2 2I110D 配备多个 I/O，例如 HDMI、4 个 2.5 GbE网口、3 个 USB 3.0 端口、2 个 USB 2.0 端口和 2 个 串口以及用于工业通信和控制的可选隔离数字 I/O。此外，通过采用M.2插槽，SKY 2 2I110D可以轻松安装用于AI应用的Hailo-8™ AI加速模块。


通过与 LEX SKY 2 2I110D 系统的高度兼容性，Hailo-8™ 边缘人工智能模块能最大限度地发挥边缘人工智能运算能力并帮助客户加快上市时间。 SKY 2 2110D 与 Hailo-8™ 模块的配对使开发人员能够以低功耗运行复杂的深度学习和机器视觉应用程序。





特点

  • 11th Gen Intel® Tiger Lake-UP3, i7 / i5 / i3 / Celeron CPU
  • Pre-installed M.2 Hailo-8™ AI Accelerator
  • 1 x DDR4 SODIMM socket, Max. 32GB
  • Independent display: HDMI
  • 4 x Intel GbE LAN, 3 x USB 3.0, 2 x USB 2.0, 2 x COM
  • 2 x M.2, 1 x Nano SIM

Watch Video

Watch Video

SKY 2 2I110D + Hailo-8TM Datasheet SKY 2 2I110D CE SKY 2 2I110D FCC
MODEL SKY 2-2I110D + Hailo-8™
System Dimension(WxDxH) 141W x 111.2D x 71.9H mm
Weight(Incl.M/B) 1.25 kg
Mounting DIN Rail Mount*, Wall Mount *
CPU 11th Gen Intel® Tiger Lake-UP3, i7 / i5 / i3 / Celeron CPU
Chipset Intel Tiger Lake-UP3 SoC
AI Accelerator Pre-installed M.2 Hailo-8™ AI Accelerator
Memory 1 x DDR4 SODIMM socket, Max. 32GB
Storage M.2-SSD*
Expansion slots 1 x M.2 B key Type 3042 (PCIe x2 / USB 3.0 / 2.0),
1 x M.2 M key Type 2242 (PCIe x4 / SATA), Support NVMe
I/O portsNetwork 4 x Intel GbE (1 x I219LM + 3 x I225)
USB 3 x USB 3.0, 2 x USB 2.0
Serial ports 2 x RS232 / 422 / 485
Display 1 x HDMI
SIM 1 x Nano SIM (M.2 B key, Type 3042 (NGFF1))
Optional Modules
& Accessory		 GPS, Bluetooth, PoE, WiFi, 4G / 5G LTE, Isolated COM,
battery UPS, DI / DO, Video Input
*Wall Mount Kit, DIN Rail Mounting Kit
Power DC input : +12V
AC input : External adapter 100 / 240V
AC-DC 60W (optional)
Operating Temp.
(100 % CPU usage)		 -20°C to +60°C (Core i7 1185GRE)
Storage Temp. -20°C to +70°C
Relative Humidity 95% @ 40°C, non-condensing
OS Support  Windows® 10 IOT ; Windows® 11 IOT
Ubuntu 22.04 above, Ubuntu 22.04 host OS,
Hailo SW via Ubuntu container
