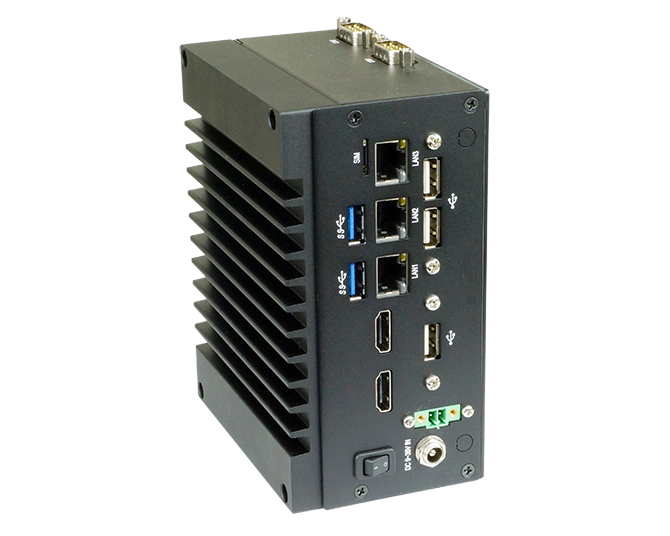

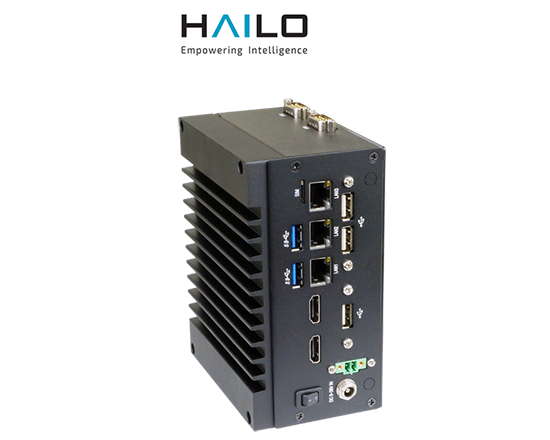

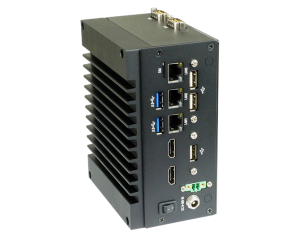

SKY 2 - 2I640DW + Hailo-8™
Computing Vision IPC w /
Intel® Atom® Elkhart Lake 6000 Series CPU &
Pre-installed M.2 Hailo-8™ AI Accelerator
Intel® Atom® Elkhart Lake 6000 Series CPU &
Pre-installed M.2 Hailo-8™ AI Accelerator
概览
SKY 2 2I640DW 是一款紧凑型无风扇 DIN-Rail 导轨计算机，尺寸为 71.9 x 111.2 x 141 毫米。它采用 Elkhart Lake Atom® 处理器，专为工厂数据收集、AIot、边缘计算和网关等空间受限应用而设计。SKY 2 2I640DW 配备多个 I/O，例如 2 x HDMI、3 x 2.5 GbE 网口、2 个 USB 3.0 端口、3 个 USB 2.0 端口和 2 个 串口以及用于工业通信和控制的可选隔离数字 I/O。
此外，通过采用M.2插槽，SKY 2 2I640DW可以轻松安装用于AI应用的Hailo-8™ AI加速模块。
通过与 LEX SKY 2 2I640DW 系统的高度兼容性，Hailo-8™ 边缘人工智能模块能最大限度地发挥边缘人工智能运算能力并帮助客户加快上市时间。 SKY 2 2I640DW 与 Hailo-8™ 模块的配对使开发人员能够以超低功耗运行复杂的深度学习和机器视觉应用程序。
特点
- Elkhart Lake ATOM® x6413E / J6412 CPU
- Pre-installed M.2 Hailo-8™ AI Accelerator
- 1 x DDR4 SODIMM socket, Max. 32GB
- Multiple Independent display: 2 x HDMI (OEM Option to DP)
- 3 x Intel 2.5 GbE LAN, 2 x USB 3.0, 3 x USB 2.0, 2 x COM
- 2 x M.2, 4DI / 4DO (option), 1 x Nano SIM
| MODEL | SKY 2-2I640DW + Hailo-8™ | |
|---|---|---|
| System Dimension(WxDxH) | 141W x 111.2D x 71.9H mm | |
| Weight(Incl.M/B) | 1.25 kg | |
| Mounting | VESA Mount* (VESA 75), DIN-Rail Mount*, Wall Mount* | |
| CPU | Intel® Elkhart Lake ATOM x6413E Quad Core 3.0 GHz CPU Intel® Elkhart Lake Celeron J6412 Quad Core 2.6 GHz CPU |
|
| Chipset | Intel Elkhart Lake SoC | |
| AI Accelerator | Pre-installed M.2 Hailo-8™ AI Accelerator | |
| Memory | 1 x DDR4 SODIMM socket, Max. 32GB | |
| Expansion slots | 1 x M.2 B Key Type 2242 / 3042 (PCIe x2 / USB 3.0 / USB 2.0) 1 x M.2 B Key Type 2242 (PCIe x2 / USB 2.0 / SATA) 1 x Nano SIM |
|
| I/O ports | Network | 3 x Intel 2.5 GbE I225 (external) |
| USB | 2 x USB 3.0, 3 x USB 2.0 | |
| Serial ports | 2 x RS232 / 422 / 485 | |
| Display | 2 x HDMI (OEM Option to DP) | |
| Optional Modules & Accessory |
GPS, Bluetooth, PoE, WiFi, 4G LTE, Isolated COM, battery UPS, DI / DO, Video Input *VESA Mounting Kit, DIN Rail Mounting Kit, *Wall Mount Kit |
|
| Power | DC input : Wide Range +9~24V AC input : External adapter 100 / 240V (optional) |
|
| Operating Temp. (100 % CPU usage) |
-20°C to +60°C (X6413E) 0°C to +60°C (J6412) *With wide range temperature memory & storage |
|
| Storage Temp. | -20°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Ubuntu 22.04 host OS, Hailo SW via Ubuntu container |
|
