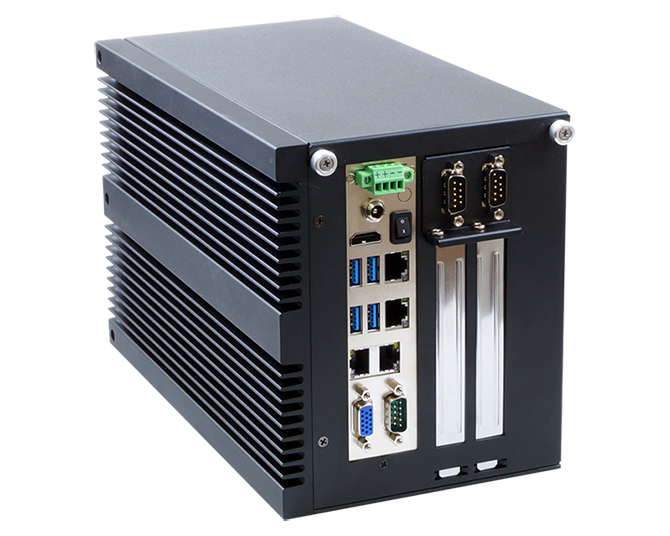

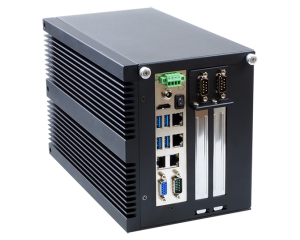

APOLLO PM170DW
High Performance 6th / 7th Gen Intel® Skylake-S
/ Kaby Lake-S i7 / i5 / i3 Fanless Embedded Computers
/ Stackable configuration Computer for CPU board
& PCIe Backplanes / Flexibility I/O / expansion PCIe x 4,
PCIe x 16
/ Kaby Lake-S i7 / i5 / i3 Fanless Embedded Computers
/ Stackable configuration Computer for CPU board
& PCIe Backplanes / Flexibility I/O / expansion PCIe x 4,
PCIe x 16
特点
- 6th / 7th Gen Intel® Skylake-S / Kaby Lake-S i7 / i5 / i3 CPU
- Intel® Q170 Chipset
- 2 x DDR4 SODIMM socket, Max. 64GB
- Multiple Independent display: HDMI & VGA
- 4 x Intel GbE LAN, 4 x USB 3.0, 3 x COM, 2 x SIM
- 2 x Mini PCIe, M.2, PCIe x 16 + PCI x 4 Signal
| MODEL | APOLLO PM170DW | |
|---|---|---|
| System Dimension(WxDxH) | 260 W x 142.5D x 173H mm | |
| Weight(Incl.M/B) | 4.2 kg | |
| CPU | 6th / 7th Gen Intel® Skylake-S / Kaby Lake-S i7 / i5 / i3 CPU |
|
| Chipset | Intel® Q170 | |
| Memory | 2 x DDR4 SODIMM socket, Max. 64GB | |
| Storage | mSATA, HDD / SSD*, M.2 | |
| Expansion slots | 1 x Full-size Mini PCIe (mSATA / USB) 1 x Full-size Mini PCIe (PCIe / USB) |
|
| I/O ports | Network | 4 x Intel GbE |
| USB | 4 x USB 3.0 | |
| Serial ports | 3 x RS232 / 422 / 485 | |
| Display | 1 x VGA, 1 x HDMI | |
| PCIe slot | 2 x PCIe slots via BPM001 backplanes | |
| Optional Modules | GPS, Bluetooth, PoE, WiFi, 4G LTE, Isolated COM, battery UPS, DI/DO, Video Input, *SATA Kit, Wall Mount Kit |
|
| Power | DC input : +12~36V AC input : External adapter 100 / 240V AC-DC 120W |
|
| Operating Temp. (100 % CPU usage) |
-20°C to +60°C (Core i6700 TE) 0°C to +50°C (Core i6700) *W / Industrial SSD |
|
| Storage Temp. | -20°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| OS Support |
7th Generation Intel® Core™ Processor family: Kaby Lake Windows® 10 IOT (64bit), 6th Generation Intel® Core™ Processor family: Skylake Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit), |
|
