导轨式系统

NET-I 2I380D

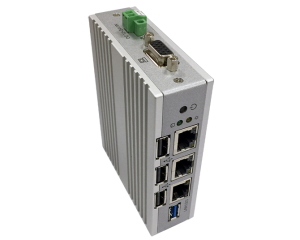

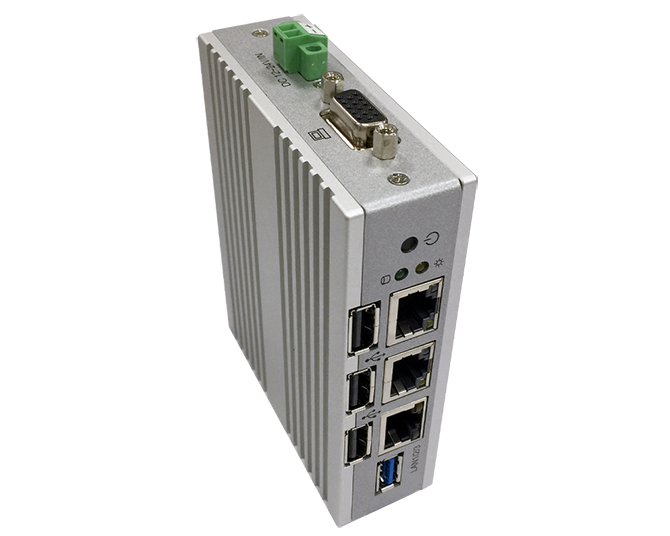

Compact Fanless Embedded Computer with
Intel® Bay Trail Processor

特点

  • Intel® Bay Trail E3825 /E3845/J1900 CPU
  • On Board DDR3L 2 / 4GB
  • Independent display: VGA
  • 3 x Intel GbE LAN, 1 x USB 3.0, 3 x USB 2.0, 2 x COM
  • 1 x Mini PCIe, 1 x M.2 B Key
MODEL NET-I-2I380D
System Dimension(WxDxH) 106W x 85D x 30H mm
Weight(Incl.M/B) 0.41 kg
CPU Intel® Bay Trail E3825/ E3845 /J1900 CPU
Chipset Intel Bay Trail SoC
Memory On Board DDR3L 2 / 4GB
Storage mSATA, 1 x M.2 B Key (SATA) Type 2242
Expansion slots 1 x Full-size Mini Card (PCIe / mSATA / USB)
I/O portsNetwork 3 x Intel GbE
USB 1 x USB 3.0, 3 x USB 2.0
Serial ports 2 x RS232 / 422 / 485
Display 1 x VGA
Optional Modules
& Accessory
GPS, Bluetooth, WiFi, 4G LTE, Isolated COM,
*VESA Mount Kit, *DIN Rail Mounting Kit
* External Power Adapter
Power DC input : +12V~+24V
AC input : AC-DC External adapter 100 / 240V (optional)
Operating Temp.
(100 % CPU usage)
-20°C to +60°C with mSATA
Storage Temp. -20°C to +70°C
OS Support Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit),
Windows® 7 (32/64bit), Windows® Embedded Standard 7 Runtime,
Ubuntu 14.10 above, Fedora 25 above, Debian 8 above, CentOS 7.3 above, Mint 18.1 above
