导轨式系统

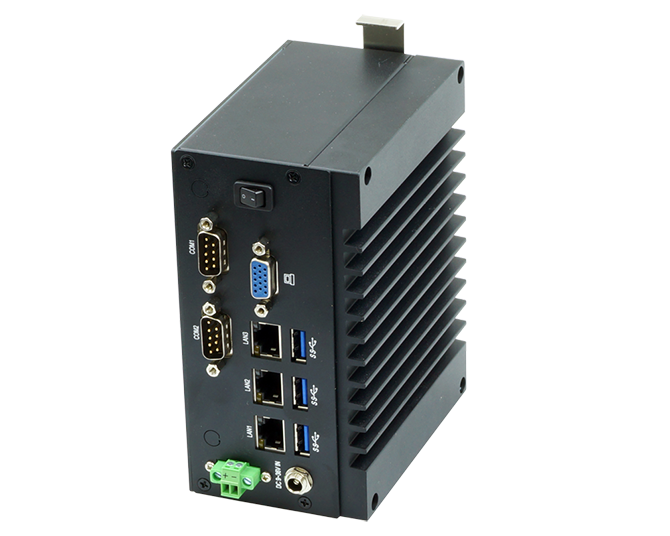

SKY 2 - 2I610DW

Compact Fanless Embedded Computer with
6th / 7th Gen Intel® Skylake-U /
Kaby Lake-U i7 / i5 / i3 processor

特点

  • 6th / 7th Gen Intel® Skylake-U /
    Kaby Lake-U i7 / i5 / i3 processor
  • 1 x DDR4 SODIMM socket, Max. 32GB
  • Independent display: VGA
  • 3 x Intel GbE LAN, 3 x USB 3.0, 2 x COM
  • 2 x Mini PCIe, 4DI / 4DO
MODEL SKY 2-2I610DW
System Dimension(WxDxH) 141W x 111.2D x 71.9H mm
Weight(Incl.M/B) 1.36 kg
Mounting DIN Rail Mount*, Wall Mount*, VESA Mount*
CPU 6th / 7th Gen Intel® Skylake-U / Kaby Lake-U CPU
Chipset Intel® Skylake-U / Kaby Lake-U SoC
Memory 1 x DDR4 SODIMM socket, Max. 32GB
Storage mSATA, HDD / SSD*
Expansion slots 1 x Full-size Mini PCIe (mSATA / USB)
1 x Full-size Mini PCIe (PCIe / USB 2.0)
I/O portsNetwork 3 x Intel GbE
USB 3 x USB 3.0
Serial ports 2 x RS232 / 422 / 485
Display 1 x VGA
Optional Modules
& Accessory
GPS, Bluetooth, PoE, WiFi, 4G LTE, Isolated COM,
battery UPS, DI / DO, Video Input
*SATA Kit, Wall Mount Kit, DIN Rail Mounting Kit
*External power adapter, *VESA Mounting Kit
Power DC input : +9V~36V
AC input : External AC-DC adapter 100 / 240V (optional)
Operating Temp.
(100 % CPU usage)
-20°C to +60°C (Celeron 3955U)
-20°C to +50°C (Core i5 6200U)
-20°C to +50°C (Core i7 6600U)
*W / Industrial SSD
Storage Temp. -20°C to +70°C
Relative Humidity 95% @ 40°C, non-condensing
OS Support

7th Generation Intel® Core™ Processor family: Kaby Lake

Windows® 10 IOT (64bit),
Ubuntu 16.04.3 above, Fedora 26 above, CentOS 7.4 above

6th Generation Intel® Core™ Processor family: Skylake

Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit), Windows® 7 (64bit), Windows® Embedded Sta 7 (64bit),
Ubuntu 16.04.3 above, Fedora 26 above, CentOS 7.4 above
