电源板

PW205

Wide range input voltage power board
with power Ignition on/off delay function

特点

DC Input: 9V~36V
Output voltage: 9V~36V (By pass Vin)
Output Current: 10A
CPC: Power ignition on/off delay function
Protections: SCP, OCP, OVP, SVP, UVP

Introduction:

PW205 is a wide range 9V-36V input voltage power board which 支持 power ignition on/off delay function (Car Power Control) for in-vehicle equipments which require wide range power input. PW205 支持 adjustable
power ignition On/Off delay time.

PW205 Datasheet PW205 CE

MODEL	PW205
Type	DC to DC
Input	3pin TB
Output port	2 x 3pin ATX & 2 x 4 wafer type
CPC Function	SMBus wafer, SW wafer
Operating Temperature	-40°C ~ +85°C
Dimensions	55 x 35 mm

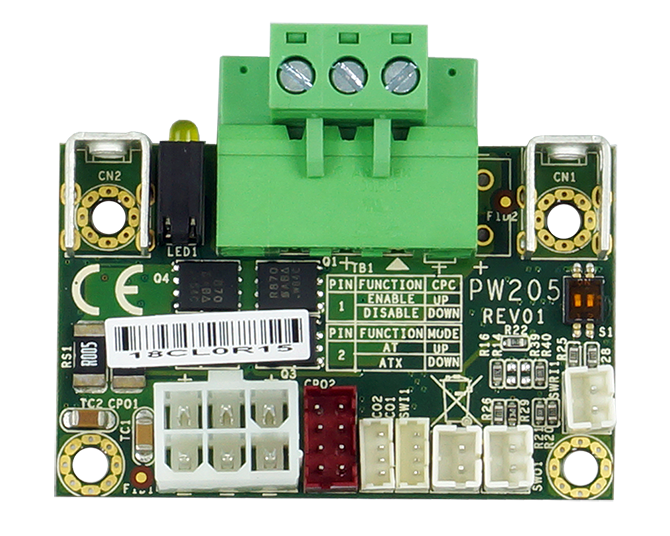

PW205 p1

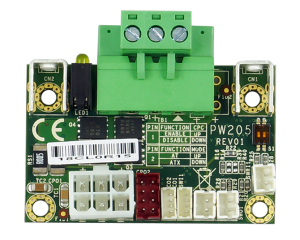

PW205 p2

PW205 p3
