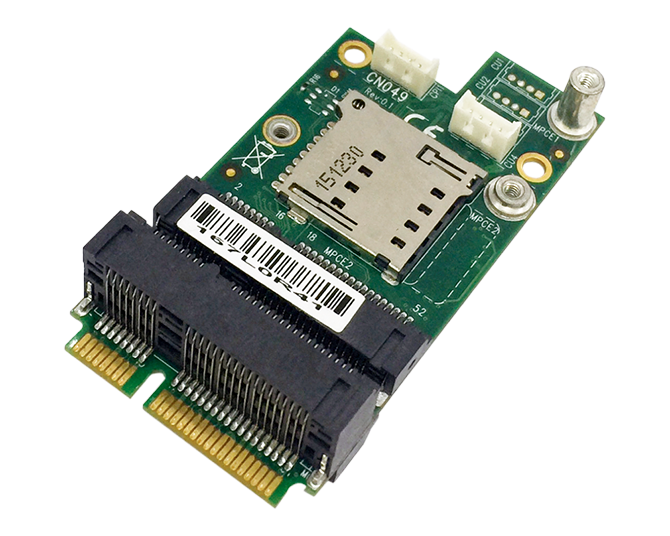

CN049
CN049-C: Mini PCIe to 3 x Mini PCIe + 1 x USB 2.0 converter board,
CN049-P: Mini PCIe to 2 x Mini PCIe + 2 x USB 2.0 converter board
CN049-P: Mini PCIe to 2 x Mini PCIe + 2 x USB 2.0 converter board
特点
CN049 converts Mini PCIe to 3 x Mini PCIe slot & 1 MicroSIM Card Socket (3G / 4G LTE) for achieving the purpose of expanding of Mini PCIe slots.
- CN049-C: 1 Mini PCI-e Slot to 3 Mini PCI-e Slot &
1 USB2.0 wafer (+5V with cable) - CN049-P: 1 Mini PCI-e Slot to 2 Mini PCI-e Slot &
2 USB2.0 wafer (+5V on board)
| MODEL | CN049 |
|---|---|
| Function | 1 x Full Size Mini Card for PCIe / mSATA / USB, 1 x Micro SIM (Push-Push) 2 x Half Size Mini Card (USB) |
| Interface | mSATA / PCI-e / USB 2.0 |
| USB Connector | 1.25 pitch 1 x 4pin (CU1~CU4) (Option) |
| Input Voltage | DC 5V |
| DC in Connector | 1 x 4pin 1.25mm 90° (CPI1) |
| Operating Temperature | -40°C ~ +85°C |
| Dimensions | 59.35 x 30cm |
