CN061

特点

• Two M.2 B-key 3042 or 3052 size Socket
• Two Micro SIM PUSH-PUSH
• DC 12V to 3.3V or 3.7V

Introduction:

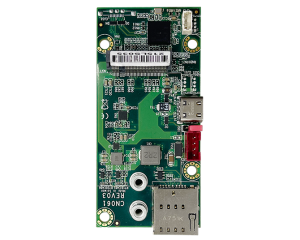

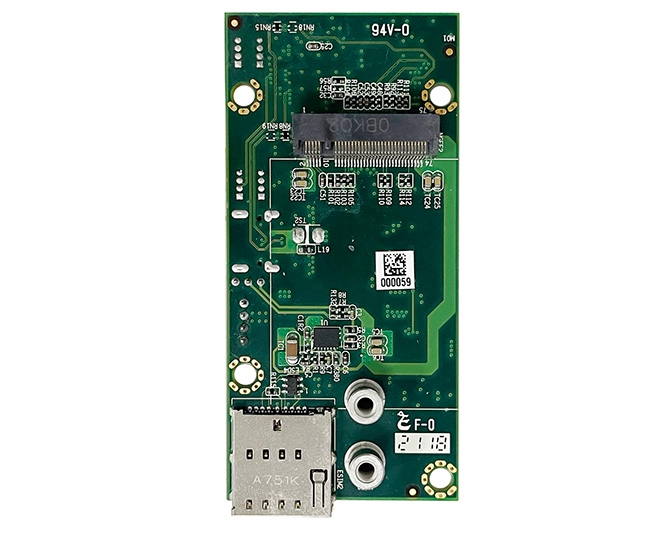

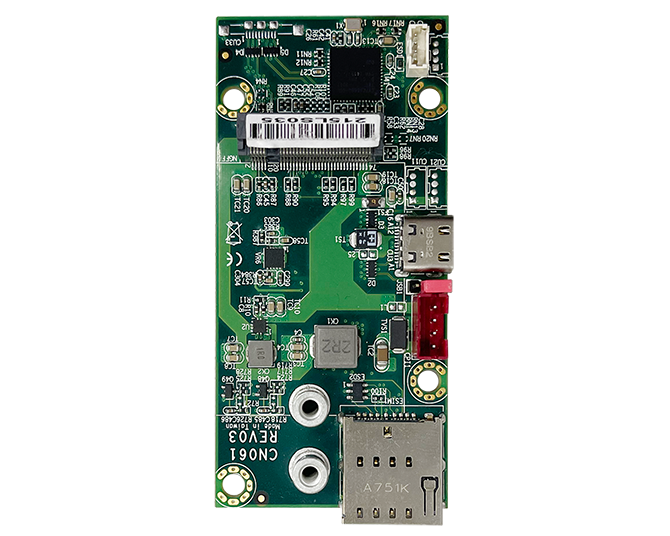

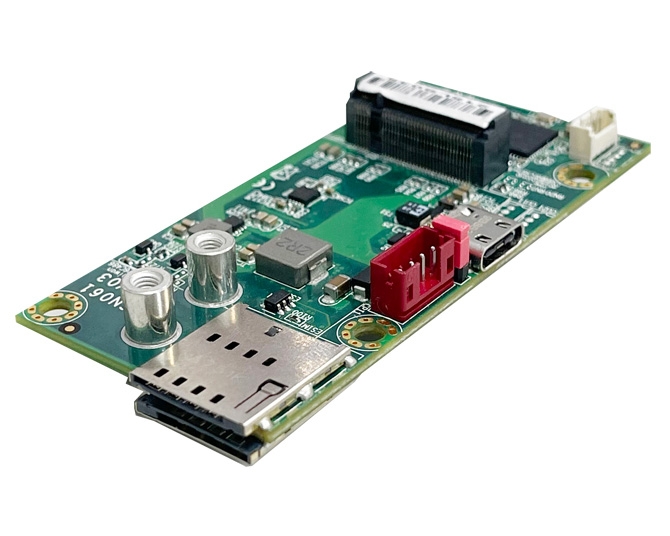

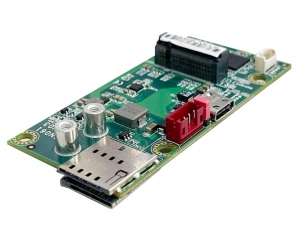

CN061 is a USB 3.0 Signal extension board. It 支持 up to 2 x M.2 B key 3042 or 3052 Slots.
The board communicates to the host PC via USB cables and powered from Motherboard CPO1 wafer.
CN061 also 支持 3G/4G micro SIM slot (push-push)

Option:

• 1 x 1.25mm 1x5pin & 1 x 1.25mm 1x4pin for USB 3.0 / 2.0 extension.

Cable information:

• 6G6002-8026-0100 (option)
  6G6003-7452-0100 L=15cm, 2.0 1*4 / 2.0 1*4
