IP65工业级平板电脑

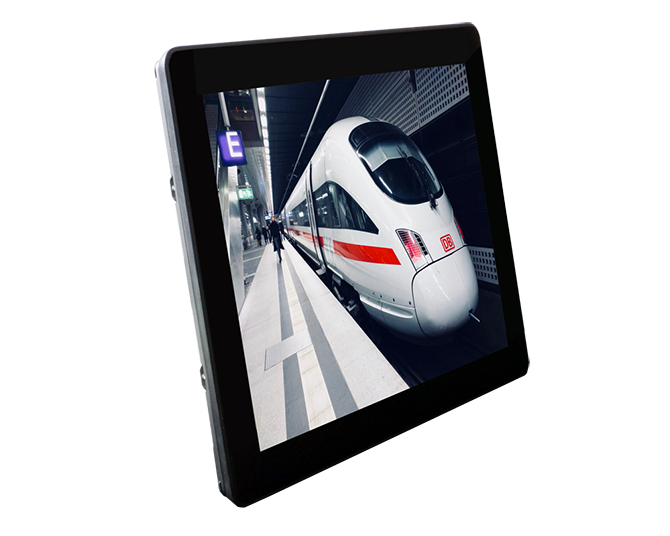

VITA 15" PPC + 3I610CW

15" Frameless Panel PC with
6th / 7th Gen Intel® Skylake / Kaby Lake-U,
i7 / i5 / i3 / Celeron CPU

特点

  • 15 " LCD with capacitive touch screen
  • Intel® Skylake / Kaby Lake-U, i7 / i5 / i3 / Celeron CPU
  • 1 x DDR4 1866 / 2133 MHz SODIMM, Max. 32GB
  • 2 x GbE, 4 x COM, DVI, VGA, 4 x USB, 1 x SIM
  • Wide Range 9~36V DC input
  • Frameless Panel & Aluminum housing
VITA 15" PPC + 3I610CW Datasheet VITA 15" PPC + 3I610CW CE VITA 15" PPC + 3I610CW FCC VITA 15" PPC + 3I610CW LVD
MODEL VITA 15" PPC + 3I610CW
System Dimension(WxDxH) 364.03W x 290.93D x 72.8H mm
Weight(Incl.M/B) 4 kg
Motherboard 3I610CW
CPU Intel® Skylake / Kaby Lake-U, i7 / i5 / i3 / Celeron CPU
Chipset Intel Skylake / Kaby Lake-U SoC
Memory 1 x DDR4 SODIMM, Max. 32GB
Storage mSATA
Expansion slots 1 x Full-size Mini PCIe (USB / mSATA)
1x Full-size Mini PCIe (PCIe / USB 2.0)
1 x SIM
M12 I /O ports
(Selectable)		Network 2 x Intel GbE
USB 4 x USB 3.0
Serial ports 4 x RS232 / 422 / 485
Display 1 x VGA, 1 x DVI
Optional Modules
& Function		 GPS, Bluetooth, PoE, WiFi, 4G LTE, Isolated COM,
battery UPS
*VESA Mount Kit, *External power adapter
Power DC input : +9~36V
AC input : External adapter 100 / 240V
AC-DC (optional)
Display Type 15 inch 4:3
Max. Resolution 1024 x 768
Viewing Angle 80(U), 80(D), 80(R), 80(L)
Luminance (cd/m2) 350
Contrast Ratio 800:1
Touch Type Projected Capacitive Touch Screen
Operating Temp.
(100 % CPU usage)		 -20°C to +50°C with mSATA
Storage Temp. -20°C to +70°C
Relative Humidity 95% @ 40°C, non-condensing
IP Rating Front panel IP65 Compliant
OS Support

7th Generation Intel® Core™ Processor family: Kaby Lake

Windows® 10 IOT (64bit),
Ubuntu 16.04.3 above, Fedora 26 above, CentOS 7.4 above

6th Generation Intel® Core™ Processor family: Skylake

Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit),
Windows® 7 (64bit), Windows® Embedded Sta 7 (64bit),
Ubuntu 16.04.3 above, Fedora 26 above, CentOS 7.4 above
