单板电脑

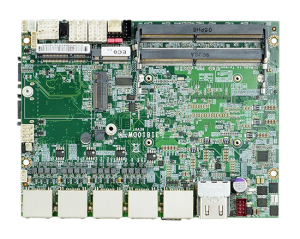

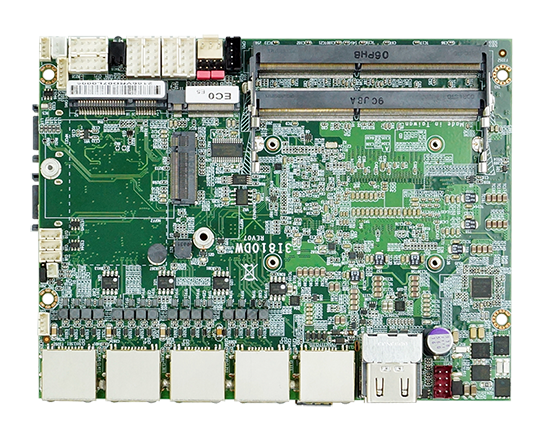

3I810DW

3.5" Embedded SBC 支持 Intel® 8th Gen Whiskey Lake-U i7 / i5 / i3,
Pentium / Celeron CPU,
2 x HDMI, 5 x Intel Gb Ethernet, 2 x M.2,
8DI / 8DO, 7 x USB, 2 x COM, 1 x Mini PCIe, 1 x Nano SIM, SMBus

概览

LEX SYSTEM 3.5” SBC 3I810DW 搭载第8代 Intel® Whiskey Lake-U7/i5/i3/Celeron处理器，集成 5 x GbE LAN、7 x USB、2 x RS232/422/485和 2 x HDMI显示器加宽电压+9~36V直流输入，为人工智能、智能自动化、机器视觉、车载、工业4.0物联网（IoT）应用中的理想平台

特点

8th Gen Intel® Whiskey Lake-U,
i7 / i5 / i3 / Pentium / Celeron CPU
2 x DDR4 SODIMM socket, Max. 64GB
Multiple Independent display: 2 x HDMI
5 x Intel GbE LAN, 4 x USB 3.1, 3 x USB 2.0
2 x COM, 8DI / 8DO, 1 x Mini PCIe,1 x Nano SIM
2 x M.2 B Key, Support NVME, SMBus
TPM 2.0 (Optional)

Watch Video

3I810DW Datasheet 3I810DW_CE 3I810DW_FCC

MODEL	3I810DW
CPU Type	Intel® Whiskey Lake-U, i7 / i5 / i3 / Pentium / Celeron CPU
MB Chipset	Intel® Whiskey Lake-U SoC
Graphics	Intel® UHD Graphics, Support DirectX 12 & OpenGL 4.5
System Memory	2 x DDR4 2400 MHz SODIMM, Max. 64GB
Storage	2 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) 1 x M.2 B Key, Type 2242 (mSATA / USB / PCIe x 1), Support NVME 1 x M.2 B Key, Type 3042 (USB 3.0 / 2.0 / PCIe x 1*), Support NVME
BIOS	AMI UEFI BIOS
Display	2 x HDMI
TPM	TPM 2.0 (Option)
LAN	1 x Intel GbE I219LM (external) 4 x Intel 2.5 GbE I225-V (external)
Audio (OEM)	High Definition Audio Specification, Support Line-out / Mic-in / Line-in Two channel Class D Audio Amplifier
Expansion Interface	1 x Full size Mini PCIe (PCIe / USB), mSATA for OEM 1 x M.2 B Key, Type 2242 (mSATA / USB / PCIe x 1) 1 x M.2 B Key, Type 3042 (USB 3.0 / 2.0 / PCIe x 1) + 1 x NANO SIM If 2242 M.2 adopts PCIe x 2 signal, 3042 M.2 will support USB 3.0 / 2.0 signal only.
Expansion Options	CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT CN067 : M.2 B key 2242 to M.2 B Key 2252, 4G / 5G (3.7V by BOM Control) CN059 : USB to Line-out / Mic- in CC007 : USB to 4 port COM CIO116G : SMBus to 8DI + 8DO PW351 : 1 port PoE PSE PW352 : 2 port PoE PSE PW301 : 802.3AF / AT PD module PW205 : Wide Range power board (9~36V) with power Ignition on/off delay PW206 : 12V / 24V DC to DC Redundant Power Board PW022 : Wide Range power board (24V / 48V)
USB	4 x USB 3.1 (external) ; 3 x USB 2.0 (internal)
Serial IO	2 x RS232 / 422 / 485 (internal) *COM1, COM2 pin9 5V / 12V selectable by jumper
GPIO	Hardware digital Input & Output, 8 x DI / 8 x DO
SMBus	1 x SMBus
WDT	Hardware Watch Dog Timer, 0~255 sec programmable
Power Input	Wide Range +9~36V
Dimension	3.5" (146 x 110 mm)
Operation Temperature (100 % CPU Usage)	-20°C~70°C (Core i7 8665UE)
Operation Humidity	5~95%, non-condensing
Chassis (OEM I/O Expansion by request)	Box PC: SKY 3, Task
OS Support	Windows® 10 IOT ; Windows® 11 IOT (i7 CPU only) Ubuntu 22.04 above, Fedora 36 above
