单板电脑

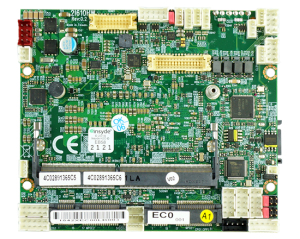

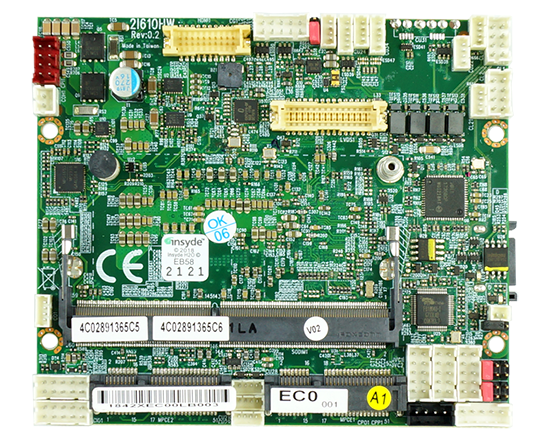

2I610HW

2.5" Plus SBC 支持 6th / 7th Gen Intel® Skylake-U / Kaby Lake-U CPU
VGA, HDMI, LVDS, Touch Screen, 2 x Intel Gb Ethernet,
4DI / 4DO, 6 x USB, 2 x COM, 2 x Mini PCIe, SMBus

特点

6th / 7th Gen Intel® Skylake-U / Kaby Lake-U, i7 / i5 / i3 / Celeron CPU
1 x DDR4 SODIMM socket, Max. 32GB
Multiple Independent display: VGA , HDMI & LVDS
2 x Intel GbE LAN, 2 x USB 3.0, 4 x USB 2.0, 1 x Micro USB 3.0 (OEM)
2 x COM, 4DI / 4DO, Touch Screen, 2 x Mini PCIe, SMBus

Watch Video

2I610HW Datasheet 2I610HW_CE 2I610HW_FCC

MODEL	2I610HW
CPU	6th / 7th Gen Intel® Skylake-U / Kaby Lake-U, i7 / i5 / i3 / Celeron CPU
MB Chipset	Intel® Skylake-U / Kaby Lake-U SoC
Graphics	Intel® HD Graphics, Support DirectX 12 & OpenGL 4.4 / 4.5
System Memory	1 x DDR4 SODIMM socket, Max. 32GB
Storage	1 x SATA ports 2.0 Data transfer rates up to 3.0 Gb/s (300 MB/s), Share with mSATA 1 1 x mini card socket for mSATA
BIOS	Insyde UEFI BIOS
Display	1 x VGA, 1 x HDMI, Dual Channel, 48 bits LVDS
Touch	USB touch screen controller
LAN	2 x Intel GbE (internal)
Expansion Interface	1 x Full size Mini PCIe (PCIe / mSATA / USB) 1 x Full size Mini PCIe (PCIe / USB)
Expansion Module	Converter Card : CN066: Mini PCIe to M.2 E key 2230, WiFi 6 + BT Mini Card : GPS, 3G / 4G, WI-FI, 2 / 4 x LAN, 4 x COM, CANBus, SDI / AHD Video By Cable : Bluetooth, Digital I/O, 2 / 4 PoE, 4 x USB mini card
USB	2 x USB 3.0 (internal) ; 4 x USB 2.0 (internal) ; 1 x Micro USB 3.0 (OEM)
USB Expansion	USB to : COM, Mini Card, M.2, Audio board
Serial IO	2 x RS232 / 422 / 485 (internal) *COM1, COM2 pin9 5V / 12V selectable by jumper
GPIO	Hardware digital Input & Output, 4 x DI / 4 x DO
SMBus	1 x SMBus
WDT	Hardware Watch Dog Timer, 0~255 sec programmable
Power Input	Wide Range +9~36V
Dimension	2.5" Plus (102 x 88 mm)
Operation Temperature (100 % CPU Usage)	-20°C~70°C (Core i7 6600U)
Operation Humidity	5~95%, non-condensing
MTBF	45℃ @ >100,000Hr
OS Support	7th Generation Intel® Core™ Processor family: Kaby Lake Windows® 10 IOT (64bit), Ubuntu 16.04.3 above, Fedora 26 above, CentOS 7.4 above 6th Generation Intel® Core™ Processor family: Skylake Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit), Windows® 7 (64bit), Windows® Embedded Sta 7 (64bit), Ubuntu 16.04.3 above, Fedora 26 above, CentOS 7.4 above
Chassis (OEM I/O Expansion by request)	IP66 / I67 Waterproof PC / IP66 / IP67 Waterproof PPC
