2I640DW + Hailo-8™ AI module
2 x HDMI, 3 x Intel 2.5 Gb Ethernet, 4DI / 4DO, 5 x USB, 2 x COM,
2 x M.2, 1 x Nano SIM, SMBus,
Pre-installed M.2 Hailo-8™ AI Accelerator
概览

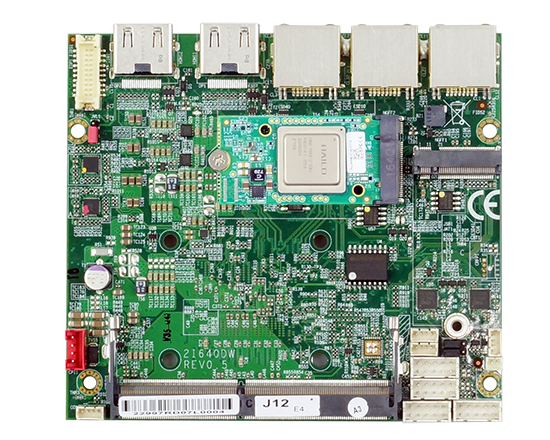

LEX System 2.5吋(110 x 98 mm) 主板：2I640DW-Hailo-8 采用 Intel Atom® x6000E 系列和 Celeron®（Elkhart Lake）系列处理器。 2I640DW 集成 3 x 2.5GbE冈口、5 x USB、2 x 串口、2 x HDMI（或 DP）显示接口和 2 x M.2 扩展槽提供理想的图形性能平台，具有集成的物联网功能、实时性能、可管理性和安全性。

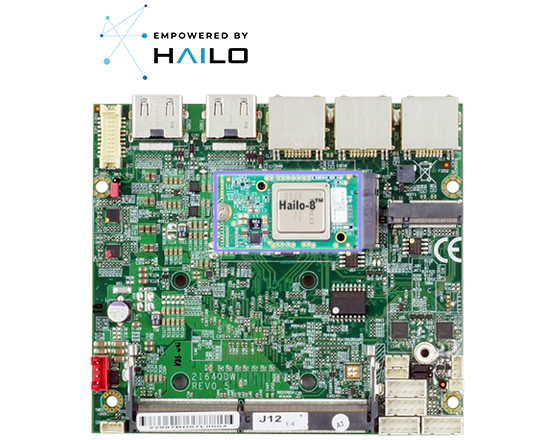

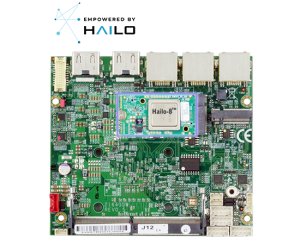

此外，通过采用M.2插槽，2I640DW可以轻松安装Hailo-8™ AI加速模块用于AI应用。 Hailo-8™ 边缘 AI 模块通过最大限度地发挥边缘 AI 的功能并帮助客户加快上市时间，提供与 2I640DW 的高度兼容性。 2I640DW 与 Hailo-8™ 模块的配对使开发人员能够以更低的功耗运行复杂的深度学习和机器视觉应用程序。
特点
- Intel® Elkhart Lake ATOM® x6413E / J6412 CPU
- Pre-installed M.2 Hailo-8™ AI Accelerator
- 1 x DDR4 SODIMM socket, Max. 32GB
- Independent display: 2 x HDMI (OEM to DP), 1 x eDP
- 3 x Intel 2.5 GbE LAN, 2 x USB 3.0, 3 x USB 2.0
- 2 x COM, 4DI / 4DO, 2 x M.2, 1 x Nano SIM
- TPM 2.0, SMBus
| MODEL | 2I640DW + Hailo-8™ AI module |
|---|---|
| CPU | Intel® Elkhart Lake ATOM x6413E Quad Core 3.0 GHz CPU Intel® Elkhart Lake Celeron J6412 Quad Core 2.6 GHz CPU |
| MB Chipset | Intel® Elkhart Lake SoC |
| Graphics | Intel® HD Graphics, Support DirectX 12.1 & OpenGL 4.5 |
| System Memory | 1 x DDR4 3200 MHz SODIMM, Max. 32GB |
| Storage | 1 x M.2 B Key Type 3042 / 2242 PCIe-SSD 1 x M.2 B Key Type 2242 SATA-SSD |
| BIOS | Insyde UEFI BIOS |
| Display | 2 x HDMI (OEM Option to DP) |
| TPM | TPM 2.0 (Firmware) ; OEM Optional to Hardware TPM |
| LAN | 3 x Intel 2.5 GbE I225 (external) |
| Expansion Interface |
1 x M.2 B Key Type2242 / 3042 (PCIe x2 / USB 3.0 / USB 2.0), 1 x Nano SIM |
| Expansion Options |
CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT |
| USB | 2 x USB 3.0 (external) ; 3 x USB 2.0 (internal) |
| Serial IO |
2 x RS232 / 422 / 485 (internal) *COM1, COM2 pin9 5V / 12V (Option) |
| GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
| SMBus | 1 x SMBus |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | Wide Range +9~24V |
| Dimension | 2.5" Plus (110 x 98 mm) |
| Operation Temperature | -20°C~70°C (100 % CPU Usage) -40°C by OEM Option |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) | Box PC: SKY 2, TERA |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Ubuntu 22.04 host OS, Hailo SW via Ubuntu container |
| Model | Function Category | Description |
|---|---|---|
| NF212A+CL001 | Networking / Communication | PCIe to GbE LAN |
| NF212B+CL002 | Networking / Communication | PCIe to Dual GbE LAN |
| NF212A+PW351 | PoE Module | 1 port PSE up to 25.5W |
| NF212B+PW352 | PoE Module | 2 port PSE up to 30.8W |
| NF226A+CL001 | Networking / Communication | PCIe to 2.5G LAN |
| NF226B+CL002 | Networking / Communication | PCIe to Dual 2.5G LAN |
| NF226A+PW351 | PoE Module | 1 port PSE up to 25.5W |
| NF226B+PW352 | PoE Module | 2 port PSE up to 30.8W |
| NF504A | Serial Board | Non-Isolated USB to 4 port RS232/422/485 board |
| CN073+ME225 | Capture Card | HDMI video capture card |
| CN073+CL006 | Converter Board | USB 3.0 to 4 x USB 3.0 |
| CN073-S3+CL210A | Networking / Communication | PCIe to 4 x GbE LAN |
| CN073-S3+CL226A | Networking / Communication | PCIe to 4 x 2.5G LAN |
| M113A-S+CIO116-B | Digital I/O board | Optocoupler isolated 16DI 16DO solution (SMBus interface) |
| CIO116-G | Digital I/O board | Optocoupler isolated 8DI 8DO board (SMBus interface) |
| CN059 | Display & Audio board | USB to Audio module |
| AU002 | Display & Audio board | USB to Audio with Audio AMP |
| CC007 | Serial Board | Non-Isolated USB to 4 port RS232/422/485 board |
| PW205 | Power Board | Wide range DC IN with CPC function |
| PW206 | Power Board | DC to DC Redundant Power Board |
| PW208 | Power Board | Wide range DC IN witn Surge stopper function |
| DP001 | Display & Audio board | eDP to VGA |
| eDP001 | Display & Audio board | eDP to LVDS |
| eDP003 | Display & Audio board | eDP to DVI |
| eDP004 | Display & Audio board | eDP to HDMI |
| 4G LTE / 5G | Networking / Communication | 4G LTE / 5G |
| WiFi+BT | Networking / Communication | WiFi+BT |
| GPS | Networking / Communication | GPS |
