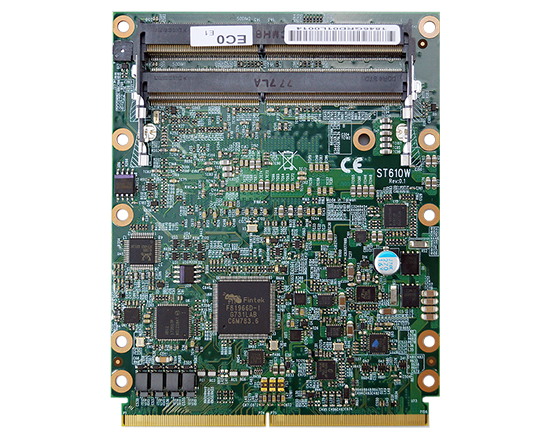

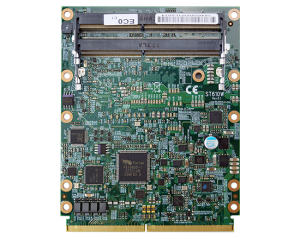

ST610W

SMART Computer on Module 支持,
6th / 7th Gen Intel® Skylake-U / Kaby Lake-U CPU,
VGA, HDMI, LVDS, Touch, 2 x Intel Gb Ethernet,
7 x USB, 4 x COM, 8DI / 8DO, 4 x PCIe

特点

  • 6th / 7th Gen Intel® Skylake-U / Kaby Lake-U, i7 / i5 / i3 / Celeron CPU
  • 2 x DDR4 SODIMM socket, Max. 64GB
  • Multiple Independent display: VGA, HDMI & LVDS
  • 2 x Intel GbE LAN, 2 x USB 3.0, 5 x USB 2.0, 8DI / 8DO
  • 4 x COM, 4 x PCIe

Watch Video

ST610W Datasheet
MODEL ST610W
CPU 6th / 7th Gen Intel® Skylake-U / Kaby Lake-U, i7 / i5 / i3 / Celeron CPU
MB Chipset Intel® Skylake-U / Kaby Lake-U SoC
Graphics Intel® HD Graphics, Support DirectX 12 & OpenGL 4.4 / 4.5
System Memory 2 x DDR4 1866 / 2133 MHz SODIMM, Max. 64GB
Storage 2 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s)
BIOS Insyde UEFI BIOS
Display 1 x VGA, 1 x HDMI, Dual Channel, 48 bits LVDS
Touch USB touch screen controller
LAN 2 x Intel GbE (internal)
Audio High Definition Audio Specification, Support Line-out / Mic-in / Line-in
Two channel Class D Audio Amplifier
Expansion Interface 4 x PCIe 1x
Expansion Module ST001:
4 x COM, 2 x GbE, VGA, HDMI, LVDS, 4 x USB,
7 x PCIe mini card, 3 x SIM socket, Audio
USB 2 x USB 3.0 (internal), 5 x USB 2.0 (internal)
Serial IO 4 x RS232 / 422 / 485 (internal)
GPIO Hardware digital Input & Output, 8 x DI / 8 x DO
WDT Hardware Watch Dog Timer, 0~255 sec programmable
Power Input Wide Range +9~36V
Dimension 88 x 110 mm
Operation Temperature
(100 % CPU Usage)		 -20°C~70°C (Core i7 6600U)
Operation Humidity 5~95%, non-condensing
MTBF 45℃ @ >100,000Hr
OS Support

7th Generation Intel® Core™ Processor family: Kaby Lake

Windows® 10 IOT (64bit),
Ubuntu 16.04.3 above, Fedora 26 above, CentOS 7.4 above

6th Generation Intel® Core™ Processor family: Skylake

Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit), Windows® 7 (64bit),
Windows® Embedded Sta 7 (64bit), Ubuntu 16.04.3 above, Fedora 26 above, CentOS 7.4 above
