嵌入式电脑模块

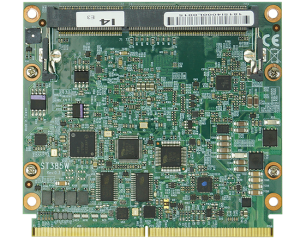

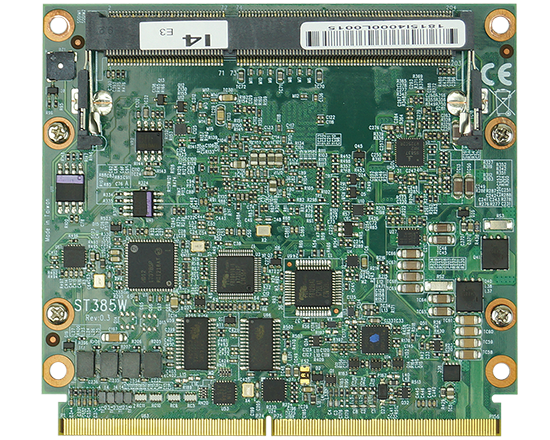

ST385W

SMART Computer on Module 支持 Intel® Bay Trail Atom / Celeron CPU
VGA, HDMI or LVDS, Touch, 2 x Intel Gb Ethernet
8 x USB, 4 x COM, 8DI / 8DO, 2 x PCIe

特点

  • Intel® Bay Trail-I Atom™ E3825 1.33GHz (Dual Core)
    Intel® Bay Trail-I Atom™ E3845 1.91 GHz (Quad Core)
    Intel® Bay Trail-D Celeron® J1900 2.0GHz (Quad Core)
  • 1 x DDR3L SODIMM, Max. 8GB
  • Multiple Independent display: VGA, HDMI & LVDS
  • 2 x Intel GbE LAN, 1 x USB 3.0, 7 x USB 2.0, 8DI / 8DO
  • 4 x COM, 2 x PCIe
MODELST385W
CPUIntel® Bay Trail-I Atom™ E3825 1.33GHz (Dual Core)
Intel® Bay Trail-I Atom™ E3845 1.91 GHz (Quad Core)
Intel® Bay Trail-D Celeron® J1900 2.0GHz (Quad Core)
MB ChipsetIntel® Bay Trail SoC
GraphicsIntel Gen7 graphic engine
DirectX11, OpenGL3.2, OpenCL1.1 ; Full HW acceleration,
decode: H.264, MPEG 2 / 4, VC-1, WMV9. Encode: H.264, MPEG2
System Memory1 x DDR3L 1066 / 1333 MHz SODIMM, Max. 8GB
Storage2 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s)
BIOSInsyde UEFI BIOS
Display1 x VGA, 1 x HDMI or LVDS
TouchCOM touch screen controller
LAN2 x Intel GbE I210IT (internal)
Audio (OEM)High Definition Audio Specification, Support Line-out / Mic-in / Line-in
Two channel Class D Audio Amplifier
Expansion Interface2 x PCIe 1x
Expansion ModuleST001:
4 x COM, 2 x GbE, VGA, HDMI, LVDS, 4 x USB,
7 x PCIe mini card, 3 x SIM socket, Audio
USB1 x USB 3.0 (internal), 7 x USB 2.0 (internal)
Serial IO4 x RS232 / 422 / 485 (internal)
GPIOHardware digital Input & Output, 8 x DI / 8 x DO
WDTHardware Watch Dog Timer, 0~255 sec programmable
Power InputWide Range +9~36V
Dimension88 x 80 mm
Operation Temperature-20°C~70°C (100 % CPU Usage)
Operation Humidity5~95%, non-condensing
MTBF45℃ @ >100,000Hr
OS SupportWindows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit),
Windows® 7 (32 / 64bit), Windows® Embedded Standard 7 Runtime,
Ubuntu 14.10 above, Fedora 25 above, Debian 8 above, CentOS 7.3 above, Mint 18.1 above
