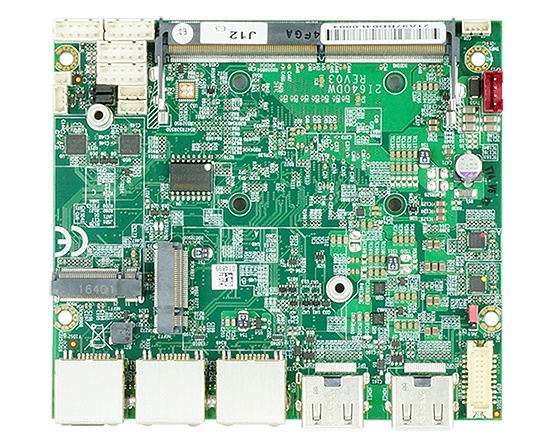

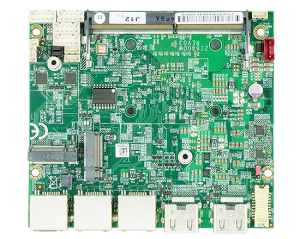

Single Board Computer

2I640DW

2.5" Plus SBC supports Intel® Elkhart Lake ATOM® x6000E Series,
2 x HDMI, 3 x Intel 2.5 Gb Ethernet, 4DI / 4DO, 5 x USB, 2 x COM,
2 x M.2, 1 x Nano SIM, SMBus

Overview

LEX System 2.5” Plus (110 x 98 mm) SBC: 2I640DW is with Intel Atom® x6000E Series and Celeron® J  (formerly Elkhart Lake ) Series processors. 2I640DW integrated 3 x GbE LAN, 5 x USB, 2 x COM Port , 2 x HDMI (or DP) display interface and 2 x M.2 expansion slot offers the ideal platform for graphics performance with integrated IoT features, real-time performance, manageability, and security.  2I640DW with excellent processor performance, multiple Giga Ethernet ports and wide range 9-24V DC-IN features is the ideal solution for OpenVINO based AI accelerators platform and advanced Edge AI, Intelligent Control, Factory Automation Industry 4.0,Internet of Things (IoT) and Edge Computing applications



Features

  • Intel® Elkhart Lake ATOM® x6413E / J6412 CPU
  • 1 x DDR4 SODIMM socket, Max. 32GB
  • Independent display: 2 x HDMI (OEM to DP), 1 x eDP
  • 3 x Intel 2.5 GbE LAN, 2 x USB 3.0, 3 x USB 2.0
  • 2 x COM, 4DI / 4DO, 2 x M.2, 1 x Nano SIM
  • TPM 2.0, SMBus

Watch Video

MODEL 2I640DW
CPU Intel® Elkhart Lake ATOM x6413E Quad Core 3.0 GHz CPU
Intel® Elkhart Lake Celeron J6412 Quad Core 2.6 GHz CPU
MB Chipset Intel® Elkhart Lake SoC
Graphics Intel® HD Graphics, Support DirectX 12.1 & OpenGL 4.5
System Memory 1 x DDR4 3200 MHz SODIMM, Max. 32GB
Storage 1 x M.2 B Key Type 3042 / 2242 PCIe-SSD
1 x M.2 B Key Type 2242 SATA-SSD
BIOS Insyde UEFI BIOS
Display 2 x HDMI (OEM Option to DP), eDP
TPM TPM 2.0 (Firmware) ; OEM Optional to Hardware TPM
LAN 3 x Intel 2.5 GbE I225 (external)
Expansion Interface

1 x M.2 B Key Type2242 / 3042 (PCIe x2 / USB 3.0 / USB 2.0), 1 x Nano SIM
1 x M.2 B Key Type2242 (PCIe x2 / USB 2.0 / SATA)

Expansion Options

CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT
CN067 : M.2 B key 2242 to M.2 B Key 2252, 4G / 5G (3.7V by BOM Control)
CN059 : USB to Line-out / Mic- in
CC007 : USB to 4 port COM
CIO116G : SMBus to 8DI + 8DO
PW351 : 1 port PoE PSE
PW352 : 2 port PoE PSE
PW301 : 802.3AF / AT PD module
PW205 : Wide Range power board (9~36V) with power Ignition on/off delay
PW206 : 12V / 24V DC to DC Redundant Power Board
PW022 : Wide Range power board (24V / 48V)
DP001 : eDP to VGA
eDP003 : eDP to DVI
eDP004 : eDP to HDMI
eDP001 : eDP to LVDS (OEM)

USB 2 x USB 3.0 (external) ; 3 x USB 2.0 (internal)
Serial IO

2 x RS232 / 422 / 485 (internal)

*COM1, COM2 pin9 5V / 12V (Option)

GPIO Hardware digital Input & Output, 4 x DI / 4 x DO
SMBus 1 x SMBus
WDT Hardware Watch Dog Timer, 0~255 sec programmable
Power Input Wide Range +9~24V
Dimension 2.5" Plus (110 x 98 mm)
Operation Temperature -20°C~70°C (100 % CPU Usage)
Operation Humidity 5~95%, non-condensing
Chassis (OEM I/O Expansion by request) Box PC: SKY 2, TERA
OS Support Windows® 10 IOT ; Windows® 11 IOT
Ubuntu 22.04 above, Fedora 36 above
