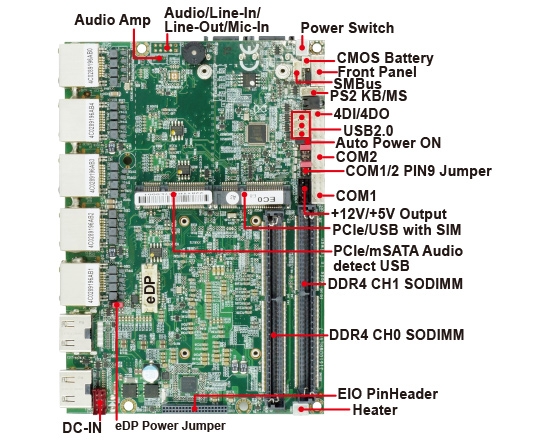

Single Board Computer
3I610DW
3.5" Embedded SBC supports 6th / 7th Gen Intel® Skylake-U / Kaby Lake-U CPU,

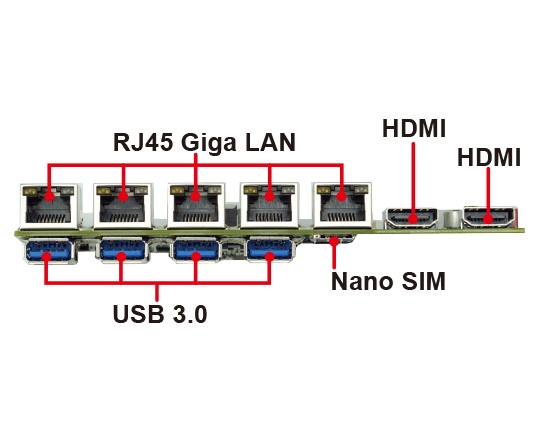

2 x HDMI, eDP, 5 x Intel Gb Ethernet, 7 x USB, 2 x COM,
4DI / 4DO, 2 x Mini PCIe, 1 x Nano SIM, LEX eIO, SMBus
2 x HDMI, eDP, 5 x Intel Gb Ethernet, 7 x USB, 2 x COM,
4DI / 4DO, 2 x Mini PCIe, 1 x Nano SIM, LEX eIO, SMBus
Features
- 6th / 7th Gen Intel® Skylake-U /
Kaby Lake-U, i7 / i5 / i3 / Celeron CPU - 2 x DDR4 SODIMM socket, Max. 64GB
- Multiple Independent display: 2 x HDMI & eDP
- 5 x Intel GbE LAN, 4 x USB 3.0, 3 x USB 2.0, 4DI / 4DO
- 2 x COM, 2 x Mini PCIe, 1 x Nano SIM, LEX eIO, SMBus
- TPM 2.0 (Optional)
| MODEL | 3I610DW |
|---|---|
| CPU | 6th / 7th Gen Intel® Skylake-U / Kaby Lake-U, i7 / i5 / i3 / Celeron CPU |
| MB Chipset | Intel® Skylake-U / Kaby Lake-U SoC |
| Graphics | Intel® HD Graphics, Support DirectX 12 & OpenGL 4.4 / 4.5 |
| System Memory | 2 x DDR4 1866 / 2133 MHz SODIMM, Max. 64GB |
| Storage | 1 x mini card socket for mSATA 2 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) |
| BIOS | Insyde UEFI BIOS |
| Display | 2 x HDMI, eDP |
| TPM | TPM 2.0 (Option) |
| LAN | 1 x Intel GbE I219LM (external), 4 x Intel GbE (external) |
| Audio (OEM) | High Definition Audio Specification, Support Line-out / Mic-in / Line-in Two channel Class D Audio Amplifier |
| Expansion Interface | 1 x Full size Mini PCIe (mSATA / USB) 1 x Full size Mini PCIe (PCIe / USB) 1 x Nano SIM LEX eIO 1 x PCIe + USB |
| Expansion Module |
Converter Card : CN066: Mini PCIe to M.2 E key 2230, WiFi 6 + BT Mini Card : GPS, 3G / 4G, WI-FI, 2 / 4 x LAN, 4 x COM, CANBus, SDI / AHD Video By Cable : Bluetooth, Digital I/O, 2 / 4 PoE, 4 x USB mini card |
| USB | 4 x USB 3.0 (external) ; 3 x USB 2.0 (internal) |
| USB Expansion | USB to : COM, Mini Card, M.2, Audio board |
| Serial IO |
2 x RS232 / 422 / 485 (internal) *COM1, COM2 pin9 5V / 12V selectable by jumper |
| GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
| SMBus | 1 x SMBus |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| PS2 KB / MS | PS2 KB / MS (internal) |
| Power Input | Wide Range +9~36V |
| Dimension | 3.5" (146 x 102 mm) |
| Operation Temperature (100 % CPU Usage) |
-20°C~70°C (Core i7 6600U) |
| Operation Humidity | 5~95%, non-condensing |
| MTBF | 45℃ @ >100,000Hr |
| OS Support |
7th Generation Intel® Core™ Processor family: Kaby Lake Windows® 10 IOT (64bit), 6th Generation Intel® Core™ Processor family: Skylake Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit), Windows® 7 (64bit), Windows® Embedded Sta 7 (64bit), |
| Chassis (OEM I/O Expansion by request) | Box PC: MIRO 3, SKY 3, TASK |
