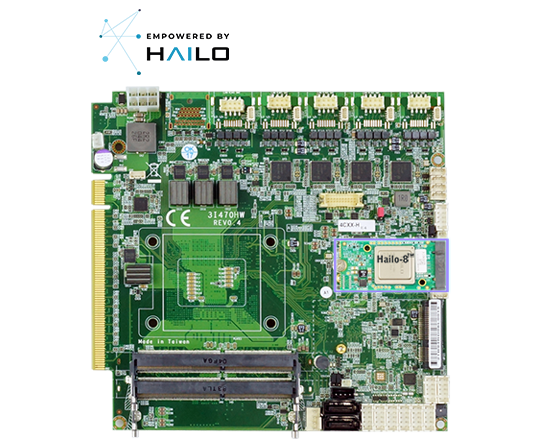

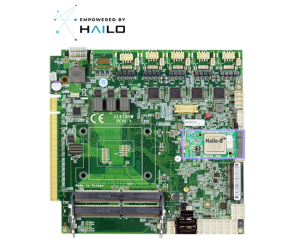

3I470HW + Hailo-8™ AI module
3.5" Plus Embedded SBC 支持 10th Gen Intel® Comet Lake-S
i9 / i7 / i5 / i3 Pentium / Celeron (35W) CPU,
Intel® Q470 chipset,
eDP, 5 x Intel Gb Ethernet, 8 x USB, 8DI / 8DO,
4 x COM, 1 x Mini PCIe, 1 x M.2, 1 x PCIe, 1 x SIM, SMBus,
Pre-installed M.2 Hailo-8™ AI Accelerator
i9 / i7 / i5 / i3 Pentium / Celeron (35W) CPU,
Intel® Q470 chipset,
eDP, 5 x Intel Gb Ethernet, 8 x USB, 8DI / 8DO,
4 x COM, 1 x Mini PCIe, 1 x M.2, 1 x PCIe, 1 x SIM, SMBus,
Pre-installed M.2 Hailo-8™ AI Accelerator
概览
LEX SYSTEM 3I470HW，采用英特尔第十代 Comet Lake-S Core i CPU，配备針腳式 I/O 端口：5 个GbE、4 个 RS232/RS422/485 串口、8 个 USB、8 个 DI/8 个 DO 和 PCIe/mPCIe/M.2 扩展槽，是具有高度灵活性的扩展功能的理想平台 & 还为用户提供了将 SBC 板集成到诊断测试工具和视频监控、车辆控制设备中的无障碍解决方案通信和工业物联网自动化应用。
此外，通过采用 M.2 插槽，3I470HW 可以轻松安装 Hailo-8™ AI 加速模块，用于 AI 应用。Hailo-8™ AI 模块与 3I470HW 的高度兼容性最大限度地发挥边缘 AI 的功能并帮助客户加快上市时间。3I470HW 与 Hailo-8™ 模块的配对使开发人员能够以更低的功耗运行复杂的深度学习和机器视觉应用程序，适用于智能交通、工厂自动化和远程医疗应用程序。
特点
- 10th Gen Intel® Comet Lake-S
i9 / i7 / i5 / i3 Pentium / Celeron (35W) CPU - Pre-installed M.2 Hailo-8™ AI Accelerator
- Intel® Q470 chipset
- 2 x DDR4 SODIMM socket, Max. 64GB
- Multiple Independent display: eDP
- 5 x Intel GbE LAN, 4 x USB 3.1, 4 x USB 2.0
- 4 x COM, 1 x Mini PCIe, 1 x PCIe, 1 x M.2, 1 x Nano SIM
- 8DI / 8DO, TPM 2.0, SMBus
| MODEL | 3I470HW + Hailo-8™ AI module |
|---|---|
| CPU | 10th Gen Intel® Comet Lake-S i9 / i7 / i5 / i3 Pentium / Celeron (35W) CPU |
| MB Chipset | Intel® Q470 |
| Graphics | Intel® UHD Graphics, Support DirectX 12 & OpenGL 4.5 |
| System Memory | 2 x DDR4 2400 MHz SODIMM, Max. 64GB |
| Storage | 2 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) 1 x mini card socket for mSATA 1 x M.2 B Key, Type 3042 / 3052 (mSATA / PCIe / USB 3.0 / USB 2.0) |
| BIOS | AMI UEFI BIOS |
| Display | 1 x eDP ; optional to VGA or DVI or HDMI |
| TPM | TPM 2.0 |
| LAN | 1 x Intel GbE I219LM (internal), 4 x Intel 2.5 GbE I225 (internal) |
| Audio (OEM) | High Definition Audio Specification, Support Line-out / Mic-in / Line-in |
| Expansion Interface | 1 x Full size Mini PCIe (PCIe / mSATA / USB 3.0 / USB 2.0) 1 x M.2 B Key, Type 3042 / 3052 (mSATA / PCIe / USB 3.0 / USB 2.0) (Support NVME) 1 x Nano SIM 1 x PCIe 16x / 8x / 4x / 1x golden finger |
| Expansion Options | CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT CN067 : M.2 B key 2242 to M.2 B Key 2252, 4G / 5G (3.7V by BOM Control) CN059 : USB to Line-out / Mic- in CC007 : USB to 4 port COM CIO116G : SMBus to 8DI + 8DO PW351 : 1 port PoE PSE PW352 : 2 port PoE PSE PW301 : 802.3AF / AT PD module PW205 : Wide Range power board (9~36V) with power Ignition on/off delay PW206 : 12V / 24V DC to DC Redundant Power Board PW022 : Wide Range power board (24V / 48V) DP001 : eDP to VGA eDP003 : eDP to DVI eDP004 : eDP to HDMI eDP001 : eDP to LVDS (OEM) |
| USB | 4 x USB 3.1 (external) ; 4 x USB 2.0 (internal) |
| Serial IO | 4 x RS232 / 422 / 485 (internal) (OEM option to 6 x COM w/o DIO) *COM1, COM2 pin9 5V / 12V (Option) |
| GPIO | Hardware digital Input & Output, 8 x DI / 8 x DO |
| SMBus | 1 x SMBus |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | Wide Range +12~36V |
| Dimension | 161.51 x 155 mm (Memory at Horizontal DIMM Socket) 150 x 155 mm (Memory at Vertical DIMM Socket) |
| Operation Temperature (100 % CPU Usage) |
-20°C~70°C (Core i7 10700T) |
| Operation Humidity | 5~95%, non-condensing |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Ubuntu 22.04 host OS, Hailo SW via Ubuntu container |
