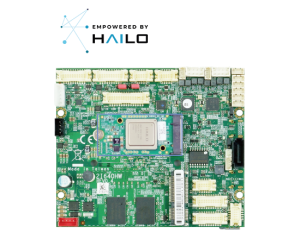

2I640HW + Hailo-8™ AI module
Intel® Elkhart Lake ATOM® x6000E Series,
HDMI, LVDS, eDP, 2 x Intel 2.5 Gb Ethernet, 6 x USB,
Touch Screen, 4 x COM, 1 x Mini PCIe, 1 x PCIe x 2*, 1 x M.2,
1 x Nano SIM, HD Audio, 4DI / 4DO, SMBus,
Mini PCIe Hailo-8™ AI Accelerator
概览

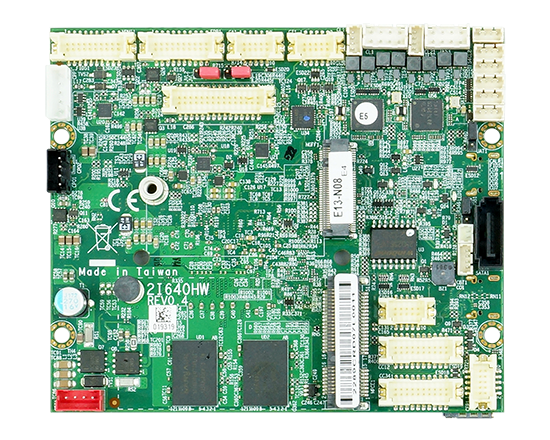

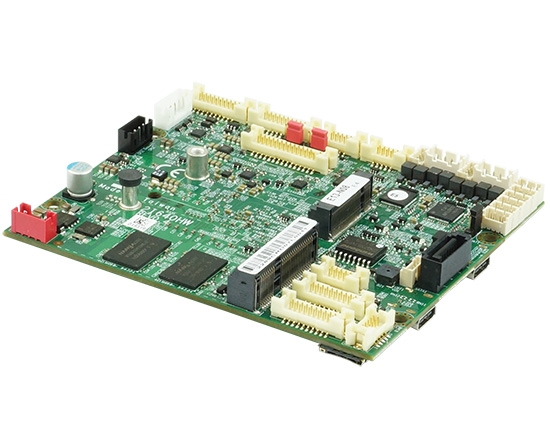

LEX SYSTEM 2I640HW 为搭载Intel Atom® x6000E和 Celeron® J 系列Elkhart Lake处理器的 2.5 英寸（102 x 88 毫米）嵌入式主板。 2I640HW采用 Intel® UHD 显示晶片，具备全新层次的绘图效能，能同时驱动HDMI、LVDS 和 eDP显示器。 2I640HW集成 2 x 2.5 GbE网口、6 x USB、4 x 串口。

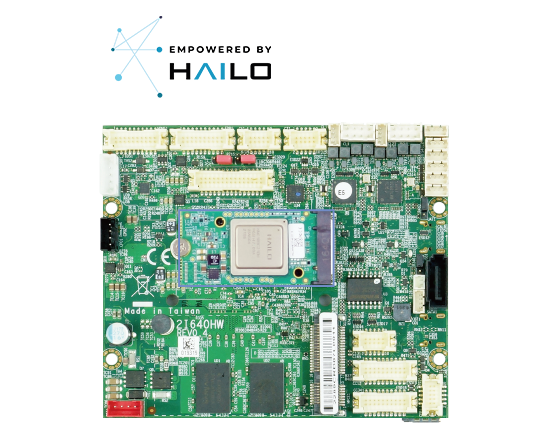

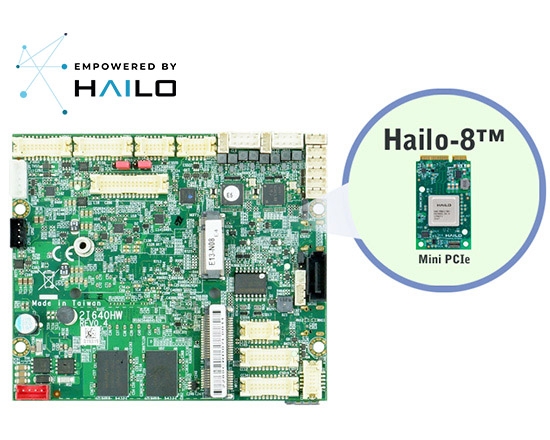

此外，通过采用Mini PCIe插槽， 2I640HW可以轻松安装用于AI应用的Hailo-8™ AI加速模块。通过与 2I640HW的高度兼容性，Hailo-8™ 边缘人工智能模块能最大限度地发挥边缘人工智能运算能力并帮助客户加快上市时间。2I640HW 与 Hailo-8™ 模块的配对使开发人员能够以較低功耗运行复杂的深度学习和机器视觉应用程序。
2I640HW 的全针脚I/O端子，具备高度的灵活性。使用者可利用cable 扩充I/O与各种传输埠到客制外壳或适机器设备中，让空间与散热不再限制您的嵌入式应用。 2I640HW支援新世代的物联网边缘装置，其低功耗、高效能运算和绘图功能，适用于关键控制系统、工业自动化、车载信息娱乐、智能控制、智慧工厂、物联网 (IoT) 和边缘计算应用。
特点

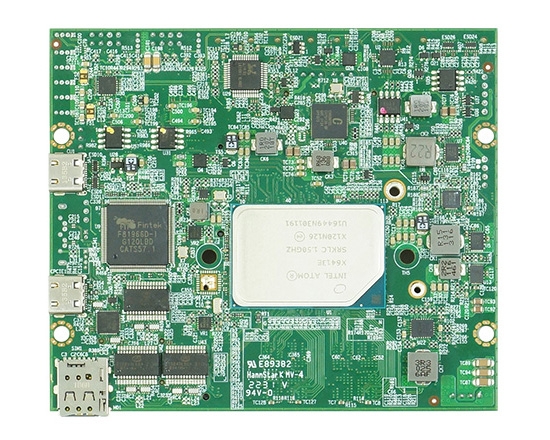

- Intel® Elkhart Lake ATOM® x6413E / J6412 CPU
- On Board LPDDR4 up to 8GB
- Independent display: 1 x HDMI, 1 x LVDS, 1 x eDP
- 2 x Intel 2.5 GbE LAN, 1 x USB 3.0*, 5 x USB 2.0
- 1 x Mini PCIe, 1 x M.2, 1 x Nano SIM, 1 x PCIe x 2*
- 4 x COM, SMBus
- Touch Screen, HD Audio, 4DI / 4DO
- TPM 2.0
| MODEL | 2I640HW + Hailo-8 ™ AI module |
|---|---|
| CPU | Intel® Elkhart Lake ATOM® x6413E / J6412 CPU |
| MB Chipset | Intel® Elkhart Lake SoC |
| Graphics | Intel® HD Graphics, Support DirectX 12.1 & OpenGL 4.5 |
| System Memory | On Board LPDDR4 3200 MHz, Max. 8GB |
| Storage | 1 x M.2 B Key 2242 / 3042 SATA 1 x SATA |
| BIOS | Insyde UEFI BIOS |
| Display | 1 x HDMI, 1 x eDP, 1 x Dual Channel, 48 bits LVDS |
| Touch | USB interface Touch Screen controller |
| TPM | TPM 2.0 (Firmware) ; OEM Optional to Hardware TPM |
| LAN | 2 x Intel 2.5 GbE I225 (internal) |
| Audio | High Definition Audio Specification, Support Line-out / Mic-in / Line-in Two channel Class D Audio Amplifier |
| Expansion Interface | 1 x Mini PCIe (USB 2.0 / PCIe) 1 x M.2 B Key 2242 / 3042 (SATA / USB 3.0 / 2.0) 1 x Nano SIM (M.2) 1 x PCIe x 2 (Type C*) *LEX-defined Type C pin configuration |
| Expansion Options |
CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT |
| USB | 1 x USB 3.0 (Type C*) *LEX-defined Type C pin configuration ; 5 x USB 2.0 (internal) |
| Serial IO |
1 x RS232 / 422 / 485 *COM1~COM4 pin9 5V / 12V (Option) |
| GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
| SMBus | 1 x SMBus |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | Wide Range +9~36V |
| Dimension | 2.5" Plus (102 x 88 mm) |
| Operation Temperature | -20°C~70°C (100 % CPU Usage) -40°C by OEM Option |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) | Box PC: Waterproof Box PC, Waterproof PPC |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Ubuntu 22.04 host OS, Hailo SW via Ubuntu container |
| Model | Function Category | Description |
|---|---|---|
| M061R | Mini PCIe Card | PCIe to SATA x 2 RAID mini card |
| M113A+CIO116 | Digital I/O board | Optocouplerrr isolated 16DI 16DO solution |
| M212A-1S+CL001 | Networking / Communication | PCIe to GbE LAN |
| M212A-2S+CL002 | Networking / Communication | PCIe to Dual GbE LAN |
| M212A-1S+PW351 | PoE Module | 1 port PSE up to 25.5W |
| M212A-2S+PW352 | PoE Module | 2 port PSE up to 30.8W |
| M213A+CN052 | Networking / Communication | 1000Base-BX fiber board |
| M504B | Serial Board | Isolated USB to 4 port RS232/422/485 board |
| M954B | Serial Board | Isolated USB to 4 port RS232/422/485 board |
| M954C | Serial Board | Non-Isolated USB to 4 port RS232/422/485 board |
| CN073+ME225 | Capture Card | HDMI video capture card |
| CN073+CL006 | Converter Board | USB 3.0 to 4 x USB 3.0 |
| M113A-S+CIO116-B | Digital I/O board | Optocoupler isolated 16DI 16DO solution (SMBus interface) |
| CIO116-G | Digital I/O board | Optocoupler isolated 8DI 8DO board (SMBus interface) |
| CC007 | Serial Board | Non-Isolated USB to 4 port RS232/422/485 board |
| PW205 | Power Board | Wide range DC IN with CPC function |
| PW206 | Power Board | DC to DC Redundant Power Board |
| PW208 | Power Board | Wide range DC IN witn Surge stopper function |
| DP001 | Display & Audio board | eDP to VGA |
| eDP003 | Display & Audio board | eDP to DVI |
| eDP004 | Display & Audio board | eDP to HDMI |
| 4G LTE / 5G | Networking / Communication | 4G LTE / 5G |
| WiFi+BT | Networking / Communication | WiFi+BT |
| GPS | Networking / Communication | GPS |
