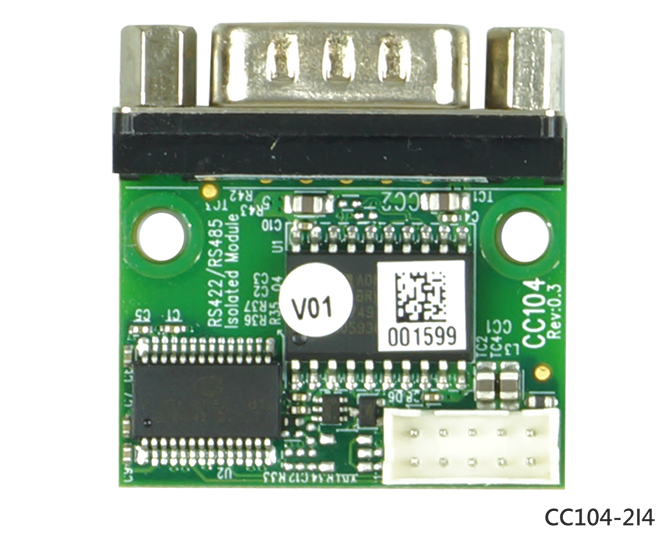

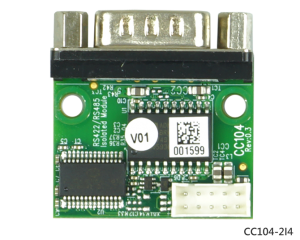

Serial Board
CC104 - 2I4
RS232 to Isolator RS422 / 485
Features
Introduction:
- CC104-2I4 Provide RS232 signal level transfer to 1 port Isolator RS422 / 485 signal level
- Data rate: 250 kbps (speed depends on Host)
- Transmit Output Current 25mA
- Receive Output Current 25mA
Isolator Spec:
- Isolated RS-485 / RS-422 transceiver, configurable as half or full duplex
- isoPower integrated, isolated dc-to-dc converter
- ±15 kV ESD protection on RS-485 input / output pins
- Complies with ANSI / TIA / EIA-485-A-98 and ISO 8482: 1987(E)
- Connect up to 256 nodes on one bus
- Open- and short-circuit, fail-safe receiver inputs
- High common-mode transient immunity: >25 kV/μs
- Thermal shutdown protection
- Safety and regulatory approvals
- UL recognition: 2500 V rms for 1 minute per UL 1577
- VDE Certificates of Conformity
- DIN EN 60747-5-2 (VDE 0884 Part 2): 2003-01
- VIORM = 560 V peak
| MODEL | CC104 |
|---|---|
| Type | RS232 to isolator RS422 / RS485 |
| Input | 2.0mm, 2 x 5 pin |
| Output port | D type 9 pin |
| Operating Temperature | -40°C ~ +85°C |
| Dimensions | 31 x 25 mm |
