NF226A

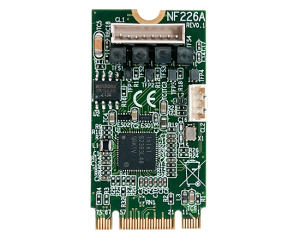

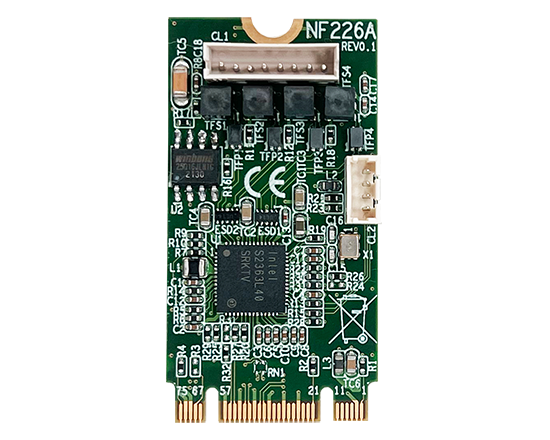

M.2 B+M key 2242 PCIe to 1 Port 2.5GbE LAN board

Features

  • Uses Intel I226IT LAN chipset for PCIe Gen2 x 1 V3.1 interface.
  • I226IT Extended temperature: -40°C to +85°C
  • Flow control support: send / receive PAUSE frames
    and receive FIFO thresholds
  • IEEE 802.3az Energy Efficient Ethernet (EEE)
  • IEEE 802.1q VLAN support
  • Audio-video bridging (AVB) support
  • IEEE 1588 / 802.1AS precision time synchronization
  • IEEE 802.1Qav traffic shaper (with software extensions)
  • Jumbo frames size 9.5KB
  • Interrupt moderation, VLAN support, IP checksum offload
  • PCIe OBFF (Optimized Buffer Flush / Fill)
    for improved system power management
  • Four transmit and four receive 4 queues of per port.
  • RSS and MSI-X to lower CPU utilization in multi-core systems
  • Advanced cable diagnostics, auto MDI-X
  • Vital Product Data (VPD). VPD Size 1024B
  • ECC-error correcting memory in packet buffers
NF226A Datasheet
MODEL NF226A
Type M.2 B+M key 2242 PCIe
to 1 port 2.5GbE LAN
Input I/F PCIe Gen2 x 1
Output I/F 1 x 8pin wafer connector
Operating Temperature -40°C ~ +85°C
Dimensions 22 x 42 mm
