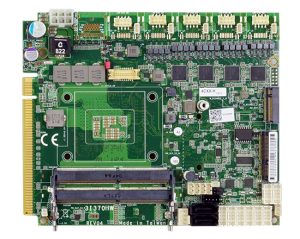

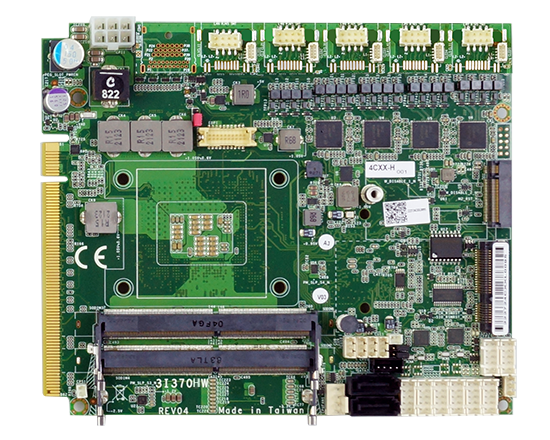

Single Board Computer

3I370HW

3.5" Plus SBC supports 8th / 9th Gen Intel® Coffee Lake-S, i9 / i7 / i5 / i3 &
Pentium / Celeron (35W) CPU, Intel® Q370 chipset,
eDP, 5 x Intel Gb Ethernet, 8 x USB, 8DI / 8DO,
4 x COM, 1 x Mini PCIe, 1 x M.2, 1 x PCIe, 1 x SIM, SMBus

Overview

LEX SYSTEM 3I370HW, with Intel 9th/8th Gen Coffee Lake-S Core i CPU, equipped with wafer type I/O ports: 5 x GbE, 6 x RS232/RS422/485 serial ports, 8 x USB, 16 DI /16 DO and PCIe/mPCIe/M.2 expansion slots, is ideal platform with high flexibility toward expanded functions & and also provides user hassle-free solution of integrating the SBC board within diagnostic test tools and control equipments for video surveillance, vehicle communication and industrial IoT automation applications.

Features

8th / 9th Gen Intel® Coffee Lake-S,
i9 / i7 / i5 / i3 / Pentium / Celeron (35W) CPU
Intel® Q370 chipset
2 x DDR4 SODIMM socket, Max. 64GB
Multiple Independent display: eDP
(eDP to VGA and DVI converter)
5 x Intel GbE LAN, 4 x USB 3.1, 4 x USB 2.0
4 x COM, 1 x Mini PCIe, 1 x PCIe, 1 x M.2, 1 x Nano SIM
8DI / 8DO, TPM 2.0, SMBus

3I370HW Datasheet

MODEL	3I370HW
CPU	8th / 9th Gen Intel® Coffee Lake-S, i9 / i7 / i5 / i3 / Pentium / Celeron (35W) CPU
MB Chipset	Intel® Q370
Graphics	Intel® UHD Graphics, Support DirectX 12 & OpenGL 4.5
System Memory	2 x DDR4 2400 MHz SODIMM, Max. 64GB
Storage	2 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) 1 x mini card socket for mSATA 1 x M.2 B Key, Type 3042 (Support NVME)
BIOS	AMI UEFI BIOS
Display	1 x eDP ; optional to VGA or DVI or HDMI
TPM	TPM 2.0
LAN	1 x Intel GbE I219LM (internal), 4 x Intel 2.5 GbE I225 (internal)
Audio (OEM)	High Definition Audio Specification, Support Line-out / Mic-in / Line-in
Expansion Interface	1 x Full size Mini PCIe (PCIe / mSATA / USB 3.0 / USB2.0) 1 x M.2 B Key, Type 3042 (mSATA / PCIe x 2 / USB 3.0 / USB 2.0), 1 x Nano SIM 1 x PCIe 16x / 8x / 4x / 1 x golden finger
Expansion Module	PCIe Card via riser Card : 2 x USB 3.1, 2 x 10 GbE LAN, 4 x PoE, 4 x GbE Converter Card : CN067: M.2 B key 2242 to M.2 B Key 2252, 4G / 5G (3.3V / 3.7V Auto detect) Mini Card : GPS, 3G / 4G, WI-FI, 2 / 4 x LAN, 4 x COM, CANBus, SDI / AHD Video
USB	4 x USB 3.1, Gen1 (external) ; 4 x USB 2.0 (internal)
USB Expansion	USB to : COM, Mini Card, M.2, Audio board
Serial IO	4 x RS232 / 422 / 485 (internal) (OEM option to 6 x COM w/o DIO) *COM1, COM2 pin9 5V / 12V (Option)
GPIO	Hardware digital Input & Output, 8 x DI / 8 x DO
SMBus	1 x SMBus
WDT	Hardware Watch Dog Timer, 0~255 sec programmable
Power Input	Wide Range +12~36V
Dimension	130 x 155 mm 141.51 x 155 mm (Memory at Horizontal DIMM Socket)
Operation Temperature (100 % CPU Usage)	-20°C~60°C (Core i7 8700T)
Operation Humidity	5~95%, non-condensing
OS Support	Windows® 10 IOT (64bit), Ubuntu 18.04.2 above, Fedora 29 above
