3I160DW
2 x HDMI®, LVDS / eDP, 1 x Type C, 5 x Intel 2.5Gb Ethernet, 3 x M.2, 1 x PCIe x 2,
2 x PCIe x 4, 4DI / 4DO, 3 x USB 3.2, 5 USB 2.0, 4 x COM, 1 x Nano SIM,
3 x MIPI-CSI, HD Audio
Overview

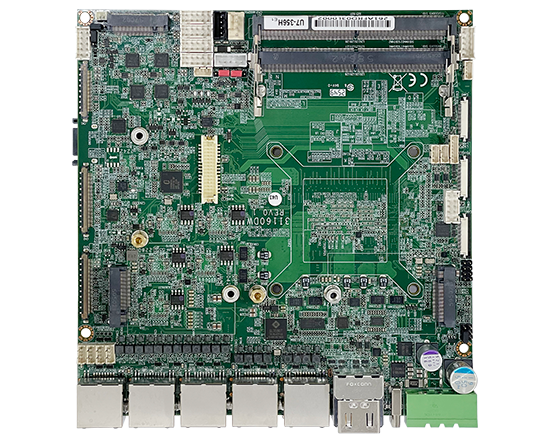

The LEX SYSTEM 3I160DW is a 3.5" Plus (146 x 150mm) SBC powered by the Intel® Core™ Ultraseries 3 (Panther Lake), featuring a revamped iGPU for superior graphics performance and an integrated NPU dedicated to accelerating edge AI workloads.
Designed for high-performance computing, the 3I160DW supports up to 64 GB of DDR5 memory via two SO-DIMM slots and offers versatile display outputs, including 2 x HDMI®, LVDS/eDP, and USB Type-C (DP Alt Mode). For robust connectivity, it integrates dual Intel® 2.5G LAN ports, 4 serial ports, and 3 x MIPI-CSI for advanced imaging. Expansion is highly flexible, with PCIe x2, PCIe x4, a Nano SIM socket, and multiple M.2 interfaces for storage, wireless, and 5G support.
With its wide-range DC input and rugged design, the 3I160DW is the ideal solution for demanding environments such as industrial automation, smart manufacturing, transportation, and healthcare.
Features
- Intel® Core™ Ultra 300 Series (Panther Lake) processors
- Revamped iGPU and integrated NPU
- 2 x DDR5 SODIMM, Max 64GB
- Multiple Independent display:
2 x HDMI®, LVDS / eDP, 1 x Type C - 5 x Intel 2.5 GbE LAN, 3 x USB 3.2 Gen1x1, 5 x USB 2.0,
- 1 x M.2 M Key, 2 x M.2 BKey, 1 x Nano SIM,
1 x PCIe x2, 2 x PCIe x 4 - 4 x COM, 4DI / 4DO, 3 x MIPI-CSI, HD Audio
- TPM 2.0, SMBus, I2C, I2S
| MODEL | 3I160DW |
|---|---|
| CPU | Intel® Core™ Ultra 300 Series (Panther Lake) processors |
| Graphics | Intel® ArcTM B370 (Core Ultra 338H) Graphics Intel® Graphics |
| System Memory | 2 x DDR5 SODIMM, Max 64GB |
| Storage | 1 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) 1 x M.2 M key Type 3080 (PCIe x4), Support NVMe |
| BIOS | AMI UEFI BIOS |
| Display | 2 x HDMI® ; 1 x LVDS / eDP ; 1 x Type C DP ALT Mode |
| TPM | TPM 2.0 |
| LAN | 5 x Intel 2.5GbE I226-IT (external) |
| Expansion Interface | 1 x M.2 M key Type 3080 (PCIe x 4), Support NVMe, (OEM to Type 3042) 1 x M.2 B key Type 3042 (USB 3.2 / USB 2.0) (OEM to Type 3052) 1 x M.2 B key Type 3042 (PCIe x2 / USB 2.0) 1 x Nano SIM, 1 x PCIe x 2, 2 x PCIe x 4 |
| Expansion Module | Converter Card : CN064: M.2 B Key to M.2 E Key 2230, WiFi 6 + BT |
| USB | 3 x USB 3.2 Gen 1 (external), 1 x Type C, USB 3.2 (external) 1 x USB 2.0 (external) ; 4 x USB 2.0 (internal) |
| Serial IO | 4 x RS232 / 422 / 485 (internal) |
| Camera interface | 3 x MIPI-CSI |
| Audio | Mic-IN, Line-in / Line-out with AMP |
| SMBus / I2C / I2S | 1 x SMBus ; 2 x 12C ; 1 x I2S |
| GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
| WDT | Hardware Watch Dog Timer, 0~65535 sec programmable |
| Power Input | Wide Range DC IN +9~36V (Typ: +12V) |
| Dimension | 3.5" Plus SBC (146 x 150 mm) |
| Operation Temperature | -20°C~45°C |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) | Box PC: SKY 3 |
| OS Support | Windows 10/11 (64bit) Linux Ubuntu 22.04 / Kernel 5.15 |
