Touch Monitor

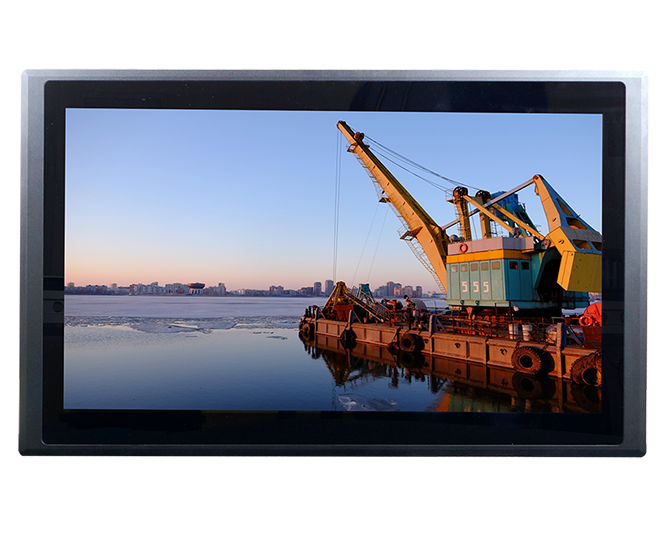

STAR 21.5" Touch Monitor
STAR Touch Monitor
| MODEL | STAR Touch Monitor 21.5" |
|---|---|
| System Dimension(WxDxH) | 64H x 548W x 328.6D mm |
| Weight(Incl.M/B) | 7.83 Kg |
| Case Material | Aluminum |
| Mounting Spec. | VESA 75 / Wall Mount |
| Panel Frame Water Proof | IP65 |
| Luminance (cd/m2) | 250 |
| Max Resolution | 1920 x 1080 |
| Color Support | 16.7M (RGB 6 bit + Hi_FRC) |
| Max Sync Rate (V x H) | 60 Hz x 80 kHz |
| Response Time | 3.8 ms (Falling time) 1.2 ms (Raising time) |
| Backlight Life | 30,000 hours |
| Touch Screen | Projected Capacitive Touch screen |
| Image Aspect Ratio | 16:9 |
| Contrast Ratio | 1000:1 |
| H-View Angle | 170° |
| V-View Angle | 165° |
| Signal Interfaces | HDMI / VGA / DVI, USB Touch, COM Touch (Optional) |
| Voltage Required | DC 12V |
| Power Consumption Operational | 15.534W (Typ.) |
| Operating Temperature | 0°C~50°C |
| Operation Humidity Range | 5~90% RH @ 39°C, non-condensing |
| Storage Temperature | -20°C~+60°C |
| Storage Humidity Range | 5~90% RH @ 39°C, non-condensing |
| Optional Accessory | Wall Mount Kit / Stand |
